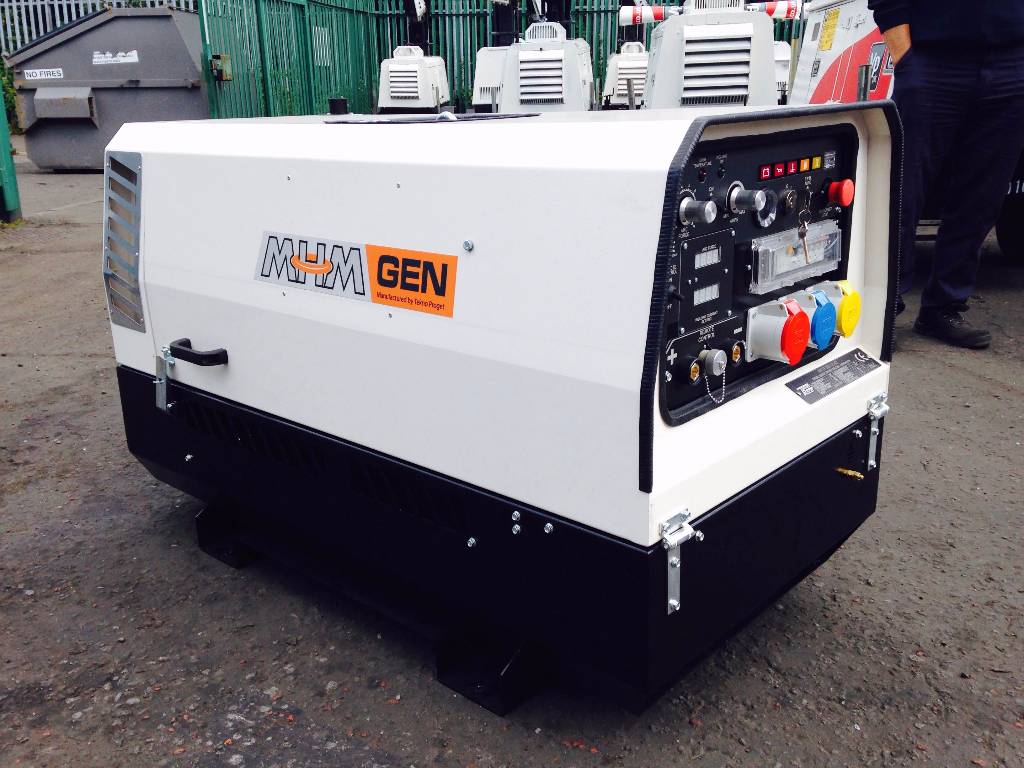

GW 10/300 SSK Diesel Welder

GW 10/300 SSK Diesel Welder

Product Code: 04/0137-h

The versatile 300A diesel welder gen from MHM offers a unique combination of smooth DC power and large multi-voltage power for many power and welding applications across a site. With a welding range of 30-300A using a Kubota diesel engine, the world class performance and unrivalled weld quality is supplemented by Water cooled super silent system to minimise site noise. With its variety of uses and burn up to a 6mm rod, the GW can be used as a welder or generator or both simultaneously, giving it a great versatility when switching between jobs.


Features and Benefits
  • Welding range 30-300A
  • Switchless AC to DC Power
  • Water-cooled world class performance
  • Welder/Generator simultaneous use
  • Range of optional extras available
Specifications
Weight 435kg
Decibel Reading dB[A] 68
Amp Output 30 - 300a
Power Output 110V 3kva
Running Time 10.3hrs @ 75% load
Max electrode size 6mm
Product Comparison
Product Name Weight Height KVA Width Decibel Reading dB[A] Engine Fuel Tank Capacity Amp Output Power Output 110V Running Time Diesel Engine Type Sound Power Levels Duty Cycle @ 60% Max electrode size Length Fuel Auxillary Power Options Simultaneous with Welding 110 volt Continuous Welding with 4.0mm Electrodes Welding Output Dc Range Amps Rating output kw Power Output 240V Power Output 415V Maximum Rod Size Price
Welder Diesel 200a 185kg 700mm 3kva 570mm 60 L 100 AE 21ltr 30 - 200a 3kva 10hrs @ 75% load Kubota 98 LWA 150a 4mm 1.07m Diesel 110v Yes 40 - 180a 4kw N/A N/A N/A

GW 10/300 SSK Diesel Welder 435kg N/A N/A N/A 68 N/A N/A 30 - 300a 3kva 10.3hrs @ 75% load N/A N/A N/A 6mm N/A N/A N/A N/A N/A N/A N/A N/A N/A

Welder / Generator Silenced Diesel 400a 565kg 1m N/A 840mm 69 Kubota D1105-E (ES) 34ltr 30 - 400a 6kVA 12.5hrs @ 75% load N/A N/A 350a 8mm 1.6m Diesel N/A N/A 300a N/A 8kVA 12kVA 6mm

Diesel Welder 600amp 1dyhr Rate 30kg 0.95m N/A 0.7m 94 N/A 63ltr 60 - 500a 4kva 12hrs @ 75% load N/A N/A N/A 8mm 1.68m N/A N/A N/A N/A N/A 4kva 18kva N/A

Diesel Welder 600amp Mwk50hr Rate 30kg 0.95m N/A 0.7m 94 N/A 63ltr 60 - 500a 4kva 12hrs @ 75% load N/A N/A N/A 8mm 1.68m N/A N/A N/A N/A N/A 4kva 18kva N/A

Diesel Welder 600amp Mwksbm Rate 30kg 0.95m N/A 0.7m 94 N/A 63ltr 60 - 500a 4kva 12hrs @ 75% load N/A N/A N/A 8mm 1.68m N/A N/A N/A N/A N/A 4kva 18kva N/A

Diesel Welder 600amp Mwkunl Rate 30kg 0.95m N/A 0.7m 94 N/A 63ltr 60 - 500a 4kva 12hrs @ 75% load N/A N/A N/A 8mm 1.68m N/A N/A N/A N/A N/A 4kva 18kva N/A
