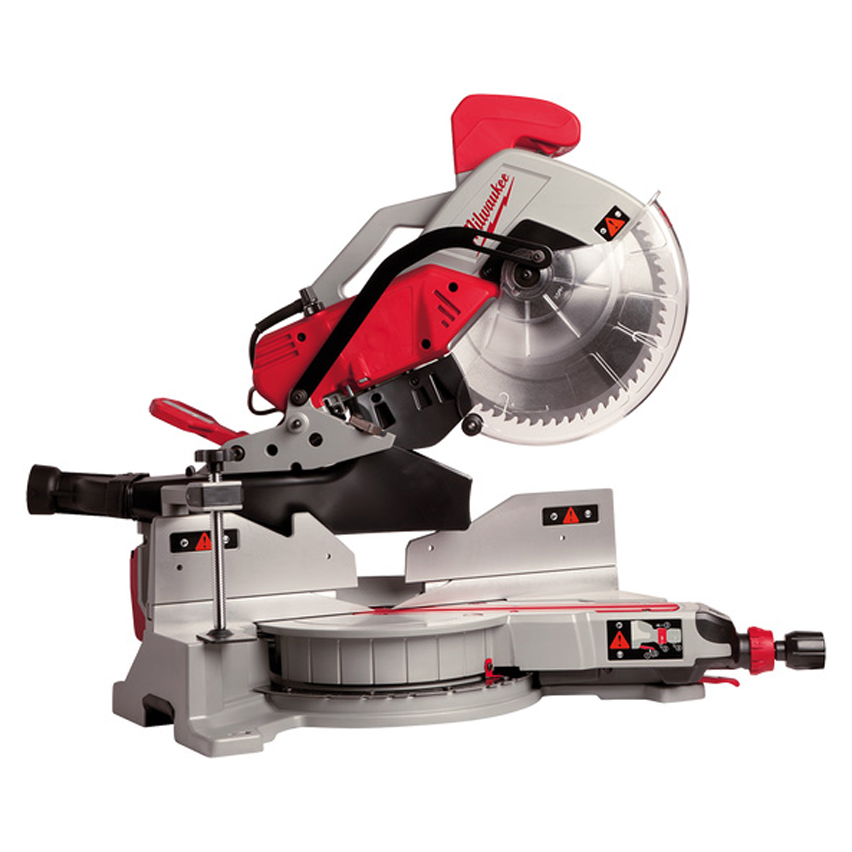

Milwaukee MS305DB 305mm Heavy Duty Double Compound Mitre Saw 110v 29.5Kg
Online price
Online Price
4 hour delivery
4 hour delivery - available for 4 hour or same day delivery

Milwaukee MS305DB 305mm Heavy Duty Double Compound Mitre Saw 110v 29.5Kg

Product Code: 15/0528-h

Integral dust channel captures 75% of all dust by capturing dust near the cut on both sides of the blade and directing it to the back of the saw. Digital mitre angle readout provides repeatable accuracy to 0.1°. 1800 Watt direct drive motor with constant power technology. Unique inline motor design for excellent visibility from both sides to the work piece and better balanced transport.

Only
£35.40
1st day
£47.20
2 days / weekend
£59.00
week
£11.80
extra day
Online Price. Log in for bespoke rates. All prices exclusive of VAT.
Features and Benefits
  • Mitre angle digital readout - provides repeatable accuracy to 0.1°
  • 1800W direct drive motor with constant power technology
  • Dual integral jobsite lights illuminate the cut line
  • Integral dust channel captures 75% of all dust by capturing dust near the cut on both sides of the blade and directing it to the back of the saw
  • Unique inline motor design - for excellent visibility from both sides to the work piece and better balanced transport
  • Mitre capacity 55° to the left and 60° to the right - for maximum versatility. Mitre detents L & R at: 0°, 15°, 22.5°, 31.6°, 45°, 60°
  • Dual-bevel design - to incline the saw head left & right 0° - 48° with bevel detents L & R at: 0°, 22.5°, 33,85°, 45°, 48°
  • Fast and accurate bevel adjustment
  • Supplied with workpiece clamp, vacuum adaptor Ø 35 / 58 mm, wrench and 3 m cable
Specifications
Bevel Capacity Left: ° 48
Bevel Capacity Right: ° 48
Blade Diameter: mm 305
Blade Thickness: mm 2.4
Bore Size: mm Diameter: 30
Cable Length: m 3
Current: Amps 15
Input Power: W 1800
Max. Cutting Capacity [45° Mitre\45° Bevel]: mm 57 x 240
Max. Cutting Capacity [45° Mitre\90° Bevel]: mm 102 x 241
Max. Cutting Capacity [90° Mitre\45° Bevel]: mm 57 x 342
Max. Cutting Capacity [90° Mitre\90° Bevel]: mm 102 x 342
Max. Cutting Depth Mitre 0° \ Inclination 0°: mm 166 / 53
Max. Cutting Depth Mitre 45° \ Inclination 0°: mm 166 / 10
Max. No Load Speed: RPM 3200
Mitre Capacity [Left]: ° 55
Mitre Capacity [Right]: ° 60
Plug Type: Amps 16
Product Brand Milwaukee
Product Model MS305DB
Sound Power Level: Lw dB[A] 108
Sound Pressure Level: dB[A] 95
Vibration Reading: m\s² 2.5
Voltage: V 110
Weight: kg 29.5
Product Comparison
Product Name Blade Diameter: mm Bore Size: mm Height: mm Input Power: W Length: mm Max. No Load Speed: RPM Max. Table Cut: mm Mitre Capacity: ° Product Brand Product Model Vibration Reading: m\s² Voltage: V Weight: kg Width: mm Cutting Depth @ 45°: mm Cutting Depth @ 90°: mm Sound Power Level: Lw dB[A] Sound Pressure Level: dB[A] Table Size: mm Cutting Depth: mm Fuel Type Engine Engine Power: hp Current: Amps Output Power: W Plug Type: Amps Bevel Capacity Left: ° Bevel Capacity Right: ° Blade Thickness: mm Cable Length: m Max. Cutting Capacity [45° Mitre\45° Bevel]: mm Max. Cutting Capacity [45° Mitre\90° Bevel]: mm Max. Cutting Capacity [90° Mitre\45° Bevel]: mm Max. Cutting Capacity [90° Mitre\90° Bevel]: mm Max. Cutting Depth Mitre 0° \ Inclination 0°: mm Max. Cutting Depth Mitre 45° \ Inclination 0°: mm Mitre Capacity [Left]: ° Mitre Capacity [Right]: ° Price
Makita LF1000 260mm Flip over Saw 110v 36Kg 260 30 890 1,650 630 2,700 70 45 Makita LF1000 2.5 110 36 630 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Makita 2704X 260mm Table Saw 110v 35Kg 260 30 344 N/A 715 4,800 N/A N/A Makita 2704X N/A 110 35 753 64 93 107 94 665 - 1,045 x 753 - 1,066 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Red Band WSA600D 400mm Site Wood Saw Diesel 370Kg 400 N/A N/A N/A N/A N/A N/A N/A Red Band WSA600D N/A N/A 370 N/A N/A N/A N/A N/A N/A 110 Diesel N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Redband WSA400P 400mm Site Wood Saw Petrol 370Kg 400 / 600 N/A N/A N/A N/A N/A N/A N/A Red Band WSA400-P N/A N/A 370 N/A N/A N/A N/A N/A N/A 110 / 185 Petrol Honda 5.5 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Makita LS1016 260mm Slide Compound Mitre Saw 110v 24.1Kg 260 30 671 1,510 718 3,200 N/A N/A Makita LS1016 N/A 110 24.1 640 N/A N/A N/A N/A N/A N/A N/A N/A N/A 15 900 16 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Milwaukee MS305DB 305mm Heavy Duty Double Compound Mitre Saw 110v 29.5Kg 305 Diameter: 30 N/A 1800 N/A 3200 N/A N/A Milwaukee MS305DB 2.5 110 29.5 N/A N/A N/A 108 95 N/A N/A N/A N/A N/A 15 N/A 16 48 48 2.4 3 57 x 240 102 x 241 57 x 342 102 x 342 166 / 53 166 / 10 55 60

£59.00 / week

Milwaukee MS216SB 216mm Sliding Mitre Saw 110v 14.5Kg 216 30 N/A 1,650 N/A 6,000 N/A N/A Milwaukee MS216SB 3.2 110 14.5 N/A N/A N/A 105.5 92.5 N/A N/A N/A N/A N/A N/A N/A N/A 48 -2 N/A N/A 190 x 48 190 x 60 270 x 48 270 x 60 N/A N/A 50 50
