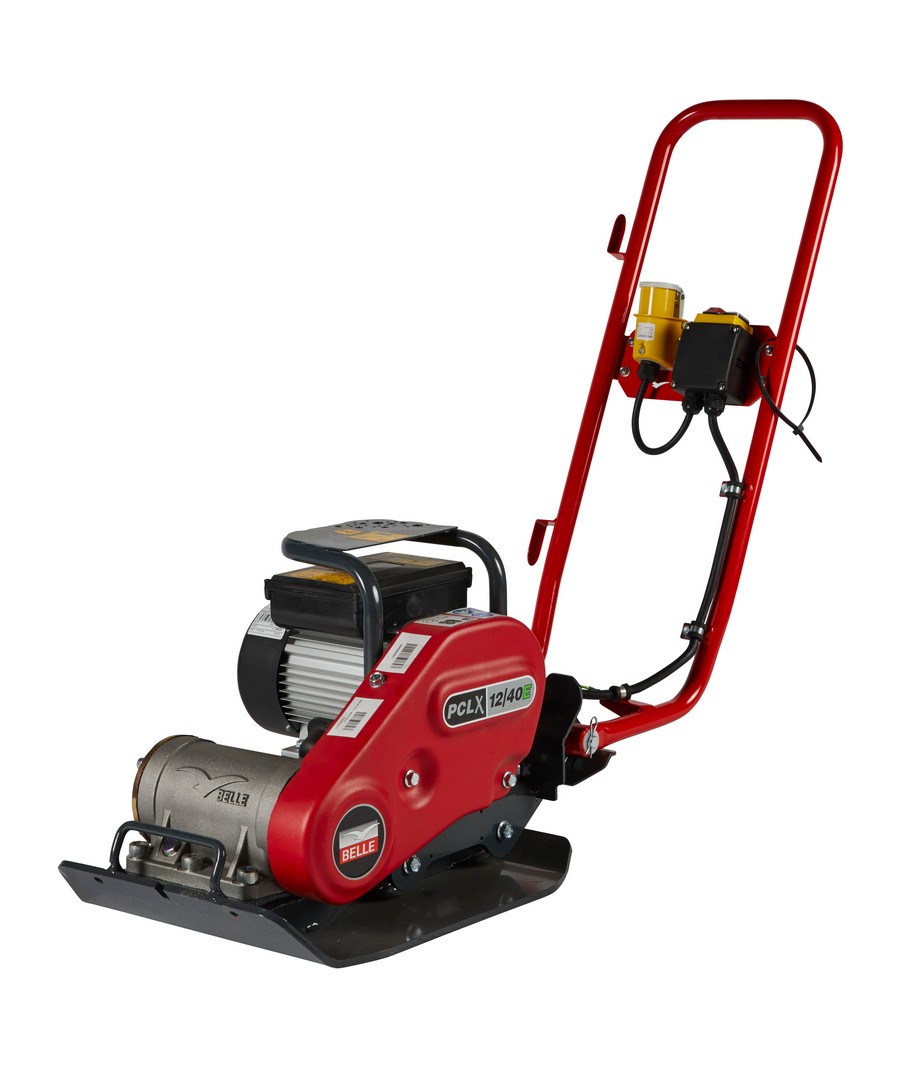

Electric Compactor 380mm

Electric Compactor 380mm

Product Code: 18/0088-h

A lightweight professional compaction plate with high performance and travel speed from the 12kN vibration unit. Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.


Features and Benefits
  • High compaction force reduces operating time
  • Environmentally friendly, 1.5kW zero emission electric motor, ideal for night time and urban use
  • Low HAV design allows longer, safe usage times
  • Front and rear manual handling points for easy 2-man lift
  • 8mm thick long life base plate for optimum compaction and reliability

Downloadable Resources

Specifications
Weight 50kg
Speed 24m/min
Width 380mm
Decibel Reading dB[A] 99
Centrifugal Force 12kn
Fuel Electric
Vibration Reading m\s2 3.97
Product Comparison
Product Name Weight Height Width Decibel Reading dB[A] Power Fuel Tank Capacity Fuel Consumption Centrifugal Force Travel Speed Base Time to EAV Time to ELV Time to Achieve Work Unit Units to EAV Units to ELV Static Pressure_kg HSE Points Length Fuel Frequency Vibration Reading m\s2 Engine Speed 3 Axis Vibration HAUC Approved Power_KW Productivity Speed Portable Transformer Price
Compactor Plate Petrol 320mm 62kg 927mm 320mm 105 3hp 2.5ltr 1 l/h 13kn 20m/min 320 x 574 mm 8hrs 32mins More than 24hrs 34.18 seconds 498 1993 398 2.25 990mm Petrol 98hz 2.42 3850rpm 2.42m/sec2 N/A N/A N/A N/A N/A

£45.00 / week

Compactor Plate Petrol 350mm 60kg 471mm 322mm 93 N/A 2.5ltr 1ltr/hr 11kn 22m/min N/A N/A N/A N/A N/A N/A N/A N/A 510mm Petrol 98Hz 4.5 N/A N/A N/A N/A N/A N/A N/A

Compactor Plate Petrol 400mm (1in) 83.5kg N/A 400mm 105 4Hp 3.7ltr N/A 13kn 20m/min 400 x 606 mm 4hrs 53mins 19hrs 32mins 23.75 seconds 1733 3130 519 2.25 per 15mins 606mm Petrol N/A 3.2 3850 RPM 3.20m/sec2 No 3.0 Honda Petrol One pass pf a 2m² area N/A N/A

£50.00 / week

Electric Compactor 380mm 50kg N/A 380mm 99 N/A N/A N/A 12kn N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Electric N/A 3.97 N/A N/A N/A N/A N/A 24m/min N/A

Forward / Reversible Compactor Plate Diesel 400mm (16in) 160kg 717mm 400mm 94 N/A 3ltr N/A 25kn 21m/min N/A 12048 mins 55 seconds 4763hrs 15mins 24.39 seconds 120 476 647 31 per 15mins N/A Diesel 90Hz 3.1 N/A N/A Yes 3.1 Hatz Diesel One pass of a 2m² area N/A N/A

£99.00 / week

Forward / Reversible Plate Diesel 500mm (20in) 265kg 758mm 500mm 95 N/A 5ltr 0.6 l/h 37kn 27m/min N/A N/A N/A N/A N/A N/A N/A N/A N/A Diesel N/A 3.2 N/A N/A No N/A N/A N/A N/A

Compactor Plate Petrol 320mm - Streetworks 65kg 928mm 320mm 105 3hp 2.5ltr N/A 13kn 18m/min 320 x 417 mm 10hrs 55mins More than 24hrs N/A N/A N/A 1611 N/A N/A Petrol N/A 2.14 3850 RPM 2.14m/sec2 N/A N/A N/A N/A 2.2

£45.00 / week
