Wacker Trench Rammer Battery Powered

Wacker Trench Rammer Battery Powered

Product Code: 18/0175-h

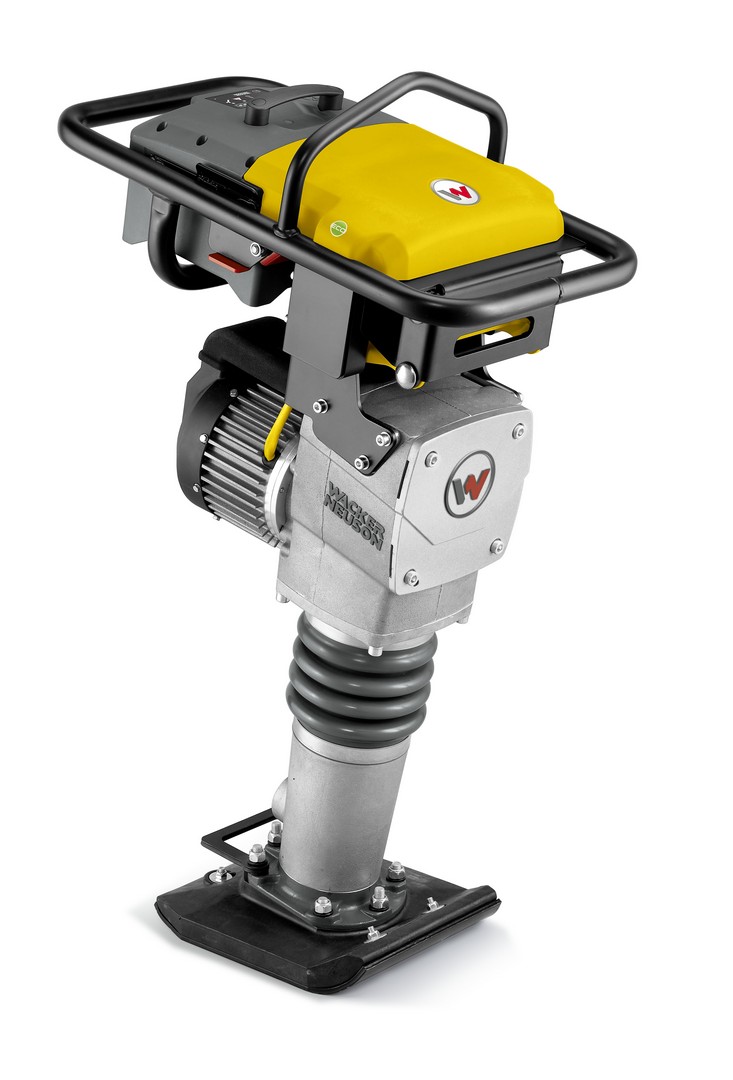

The emission free, battery powered AS50 rammer provides protection to both the user and the environment while not compromising on compaction levels. Designed to work in poorly ventilated or sensitive areas, the AS50 is 100% emission free through its L-ion powered battery, which also reduces operating costs by 55% versus gasoline powered machines yet still offers the same performance levels. The other benefits realised by using a battery rammers is the freedom of movement with a cable free environment and low HAV rating meaning longer operating times.

Cordless product Innovation Green Option


Features and Benefits
  • 100% emission-free work
  • 55% lower operating costs
  • Low HAV reading
  • Maintenance free electric motor
  • Li-Ion battery

Downloadable Resources

Energy Efficient
Products in excess of 10% more efficient than their predecessors. This product category also comes with indicative costs and carbon benefits per hour of usage.
Resource Efficient
Products which are designed better and therefore use less material, or have a high % of recycled content, over and above what would generally be expected. This category would also cover end of life re-use.
Pollution Prevention
Products which prevent pollution, not products which clean up following a pollution incident.
Nuisance Avoidance
Products which reduce statutory nuisance issues (dust, odour, litter), normally by better application or design.
Specifications
Model AS50
Capacity 12Ah
Decibel Reading dB[A] 108
Fuel Tank Capacity 2.5 ltr
Battery Life 0.3h
Blows per Minute 680bpm
Weight Dry 70kg
Ramming Shoe Width 280mm
GO Energy Efficiency and Carbon Reduction Yes
GO Resource Efficiency Yes
GO Pollution Prevention and Control Yes
GO Nuisance Avoidance Yes
GO Energy Saving 94%
GO Carbon Saving 2.39
GO Cost Saving £0.99
Percussion Rate 680 blows/min
Rated Performance 1,97kW
Rated Voltage 51v
Product Comparison
Product Name Weight Height Width Decibel Reading dB[A] Fuel Tank Capacity Centrifugal Force Travel Speed HAUC Approved Base Power Output Time to EAV Time to ELV Time to Achieve Work Unit Units to EAV Impact Power j Units to ELV Power_KW HSE Points Blows per Minute Length Fuel Frequency Vibration Reading m\s2 Ramming Shoe Width Engine Speed 3 Axis Vibration Impact Force GO Pollution Prevention and Control Fuel Type Weight Dry Stroke Capacity Battery Life GO Nuisance Avoidance Percussion Rate Rated Performance Rated Voltage Price
Trench Rammer 4 Stroke (65kg) 60kg 975mm 345mm 108 3ltr 18.7kN 13.5m/min Yes 230 x 335 x 75 mm 2.3kW 0hrs 57mins 3hrs 48mins 61.39 seconds 29 13.6kN 119 2.3kw 49 per 15mins 450-660 670mm Petrol (4 Stroke) 620vpm 10 230 3850 RPM 7.25m/sec2 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

£60.00 / week

Wacker Neuson BS 50-2 Trench Rammer Petrol 165mm 56 kg 940 mm 343 mm 108 3ltr N/A 7.9 m/min No 165 x 340 mm N/A N/A N/A N/A N/A N/A N/A N/A 49 per 15mins 687 BPM N/A Petrol (2 Stroke) 620vpm 5.4 m/s² 165 mm 3850 RPM N/A 16 kN Yes N/A N/A N/A N/A N/A N/A N/A N/A N/A

£60.00 / week

Trench Rammer 2 Stroke (66kg) 66kg N/A N/A 108 3ltr 18.7kN 17.4m/min Yes 280 x 335 x 75 mm N/A N/A N/A N/A N/A N/A N/A N/A N/A 450-660 N/A Diesel N/A 7.6 280 3850 RPM 7.25m/sec3 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

£60.00 / week

Trench Rammer - Belle RTX60 N/A 975mm 345mm 108db(A) 2.5ltr N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 450-660bpm 705mm N/A N/A 7.45m/s² 165mm N/A N/A 13.6kN N/A Petrol 60kg 52mm N/A N/A N/A N/A N/A N/A

Wacker Trench Rammer Battery Powered N/A N/A N/A 108 2.5 ltr N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 680bpm N/A N/A N/A N/A 280mm N/A N/A N/A Yes N/A 70kg N/A 12Ah 0.3h Yes 680 blows/min 1,97kW 51v
