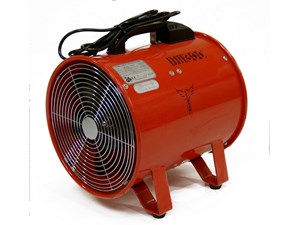

Dri-Eaz F174-UK Vortex Axial Ventilation Fan 300mm 110v 15.9Kg

Dri-Eaz F174-UK Vortex Axial Ventilation Fan 300mm 110v 15.9Kg

Product Code: 20/0067-h

These fume extractors will extract weld fumes, smoke, exhaust fumes. Also small quantities of dry grinding dust from most working environments and with the COSHH regulations now strongly being enforced, this is an essential item.


Features and Benefits
  • The Elite range of fume extractors have a 1.5mm high grade Steel body with Aluminium alloy motor housing. The overall design gives exceptional air flow and pressure. 5m fire retardant ducting available.
Specifications
Airflow: CFM 2041
Cable Length: m 6.1
Class UL/cUL Standards
Control System On/Off Toggle Switch
Current: Amps 7.4
Depth: mm 400
Engine Power: hp 1.0
Fan Speed: RPM 3520
Frequency: Hz 60
Height: mm 490
Product Brand Dri-Eaz
Product Model F174-UK
Static Pressure: In 7.6
Voltage: V 110
Weight: Kg 15.9
Width: mm 480
Product Comparison
Product Name Airflow: CFM Cable Length: m Class Control System Current: Amps Depth: mm Engine Power: hp Fan Speed: RPM Frequency: Hz Height: mm Product Brand Product Model Static Pressure: In Voltage: V Weight: Kg Width: mm Price
Dri-Eaz F174-UK Vortex Axial Ventilation Fan 300mm 110v 15.9Kg 2041 6.1 UL/cUL Standards On/Off Toggle Switch 7.4 400 1.0 3520 60 490 Dri-Eaz F174-UK 7.6 110 15.9 480

Extra Ducting For Fume Extractor N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 10M LENGTHS N/A N/A N/A N/A
