VB9+ LED Poly Shell Mobile LED Lighting Tower

VB9+ LED Poly Shell Mobile LED Lighting Tower

Product Code: 22/0089-h

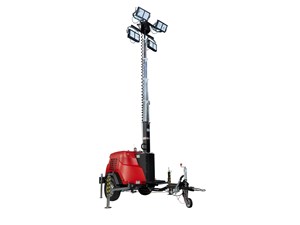

Introducing the new poly LED hydraulic vertical 340° rotation mast lighting tower, exclusive to Speedy. Extending to a height of 8.5 metres, it provides an illuminated area of 4,100sqm. The VB9+ represents the state of the art in safety and reliability. All LED lamps are powered with 24 volts and the LED drivers are protected inside the body frame. With a corrosion-proof polythene shell it can withstand the toughest applications.


Features and Benefits
  • 8.5m galvanised, 5 section, 340<special id="25"/> rotation mast
  • Hydraulic raising system
  • Certified wind stability at 80km/h
  • 4 x 300 LED lamps fed at 24v DC
  • 4 levelling jacks and chassis jockey wheel
  • 160 litres bunded plastic fuel tank
  • Light sensor and timer
  • Straight tow bar road tow trailer with Amoss Kit installed as standard feature

Downloadable Resources

Weight 785kg
Model VB9+ LED
Width 2.39m
Closed Height 2.58m
Decibel Reading: dB[A] 90
Fuel Tank Capacity 160l
Running Time 266hr
Area Coverage_min Lux of 20 4,100m²
Fuel Consumption 0.6l
Lamp Type Watts 4x300W LED
Operating Temperature -30deg + 60deg
Power Output 5Kva
IP Ratings IP67
Length 3.2m
Fuel Diesel
Mast Height 8.5m
Rotation 340deg
Wind Speed 110Km/h
