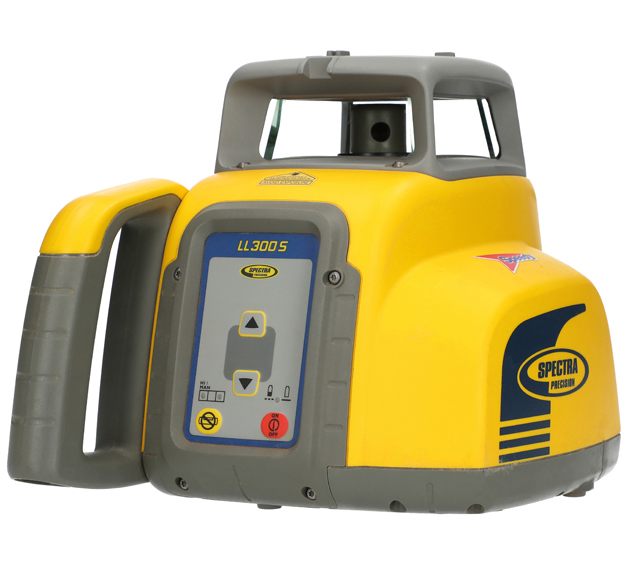

Trimble LL300S Self Leveling Rotary Level 2.7Kg

Product Code: 24/0239-h

The Spectra Precision® Laser LL300S features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). The rugged LL300S laser can withstand drops of up to three feet (one meter) onto concrete and tripod tipovers up to five feet (1.5 meters). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Only
£100.00
week
£20.00
extra day
Online Price. Log in for bespoke rates. All prices exclusive of VAT.
Features and Benefits
  • Increases productivity with fast setups, fewer mechanical parts, and automatic self-levelling
  • Maintains performance even in rainy, dusty and other harsh job site and weather conditions
  • Durable design reduces downtime due to drops and tripod tip-overs
  • Minimizes power costs, increases reliability with choice of rechargeable or alkaline batteries
  • Increases flexibility with optional long range radio remote control
  • Electronic self-levelling
  • Single Axis Manual Slope Mode
  • Out-of-level Warning
  • Flashing red LED
  • Out of Level Indicator Light
Specifications
Accuracy ±1.5 mm at 30 m
Battery Life: Hrs Rechargeable: 47, Alkaline: 60
Battery Type D-cell NiMH
Drop Test: m 1
Height: mm 201
IP Ratings IP66
Laser Source 650 nm, Class 2, <3,4mW
Length: mm 272
Operating Range Diameter: m 800
Operating Range: m 100
Operating Temperature: °C -20 to 50
Product Brand Trimble
Product Model LL300S
Rotational Speed: RPM 600
Self Leveling Accuracy: ±5
Storage Temperature: °C -20 to 70
Tripod Mount [Horizontal and Vertical] 5/8” x 11
Weight: kg 2.7
Width: mm 197
Product Comparison
Product Name Accuracy Agricultural Applications Such As Land Levelling Battery Life Beam Masking Comolded Rubber Bumpers concrete forming, pad placement and framework Construction of Sports Pitches Depth Dual Grade Elevation Alert Finish grade and sub grade Fully Automatic Self Levelling General Construction: Excavators, Footing, Concrete Forming Grade Capability H.I elevation alert feature prevents errors due to shifting or movement of the tripod Height High Visible Beam for quick & easy location Invisible Laser Beam IR IP Ratings Machine Control Applications Machine Control of Excavators, Graders, Dozers and Similar Equipment Manual Grade Capability Manual Grade Capacity Marketing Message Operating Range Out of Level Indicator Light Precise Depth Control for Sub Base and Fine Grade Excavation Product Model Railway and Airport Construction Remote Control Range Rotation Selectable Rotating Speeds Self Levelling Setting Foundations Setting foundations and footings Site Preparation and General Construction Standard Accessories Weight Width Wind Sensitivity Settings Working Range with Rod Eye Battery Life: Hrs Battery Type Drop Test: m Height: mm Laser Source Length: mm Operating Range Diameter: m Operating Range: m Operating Temperature: °C Product Brand Rotational Speed: RPM Self Leveling Accuracy: Storage Temperature: °C Tripod Mount [Horizontal and Vertical] Weight: kg Width: mm Alignment Beam Beam Direction Beam Type Defining Angles Dimensions Horizontal and Vertical Laser Horizontal Line Accuracy Interior Construction Laser Class Laser Glasses Laser Type Levelling Accuracy Number of Laser Lines Number of Laser Points Operating Temperature Plumb Beam Plumb Dot Accuracy Range Range with Laser Receiver Scan Modes Self Levelling Range Transferring Points from Floor to Ceiling Tripod Thread Vertical Line Accuracy Wall Mount Weight inc battery Working Range Price
Rugby 100 Exterior Rotating Laser +/- 1.5mm @ 30m Yes 35 Hours Rechargeable N/A Yes Yes Yes 175mm N/A Yes Yes Yes Yes N/A Yes 197mm Yes N/A IP66 Yes Yes Yes - Up To 10% Yes Up To 10% Hire Rate per Week 300m Diameter Yes Yes Leica Rugby 100 Yes N/A 5, 10rps N/A Yes Yes Yes Yes Rechargeable Batteries, Charger, Rod Eye Receiver With Bracket, Tripod & Staff 2.95kg (with batteries) 248mm N/A 300m diameter N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Rugby 100LR Exterior Rotating Laser N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Leica Rugby 100LR N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Trimble LL300S Self Leveling Rotary Level 2.7Kg ±1.5 mm at 30 m N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A IP66 N/A N/A N/A N/A N/A N/A N/A N/A LL300S N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Rechargeable: 47, Alkaline: 60 D-cell NiMH 1 201 650 nm, Class 2, <3,4mW 272 800 100 -20 to 50 Trimble 600 ±5 -20 to 70 5/8” x 11 2.7 197 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

£100.00 / week

Leica Lino L2P5 -/+ 2mm (@ 5m) N/A Up to 10 hours (alkaline) N/A N/A N/A N/A 130.7mm N/A N/A N/A Yes N/A N/A N/A 117.8mm N/A N/A IP54 N/A N/A N/A N/A N/A Up to 60m (with Laser Receiver) N/A N/A Lino L2P5 N/A N/A N/A N/A N/A N/A N/A N/A N/A 370g 75.4mm N/A N/A N/A Type AA, 4 x 1.5v N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Yes vertical, horizontal, up, down, left, right Visible Red Beam Yes 117.8 x 130.7 x 75.4mm Yes +/- 1.5 @ 5m Yes 635 nm, laser class II Yes 635nm, laser cl. 2 +/- 1.5mm @ 5m 2 5 -10degC to 40degC Yes 1.5mm @ 5m Up to 30m Up to 60m vertical, horizontal, up, down, right, left 5deg+/- 0.5deg Yes _ 0.75 @ 3m Yes 463g 15m (>30m with detector)
