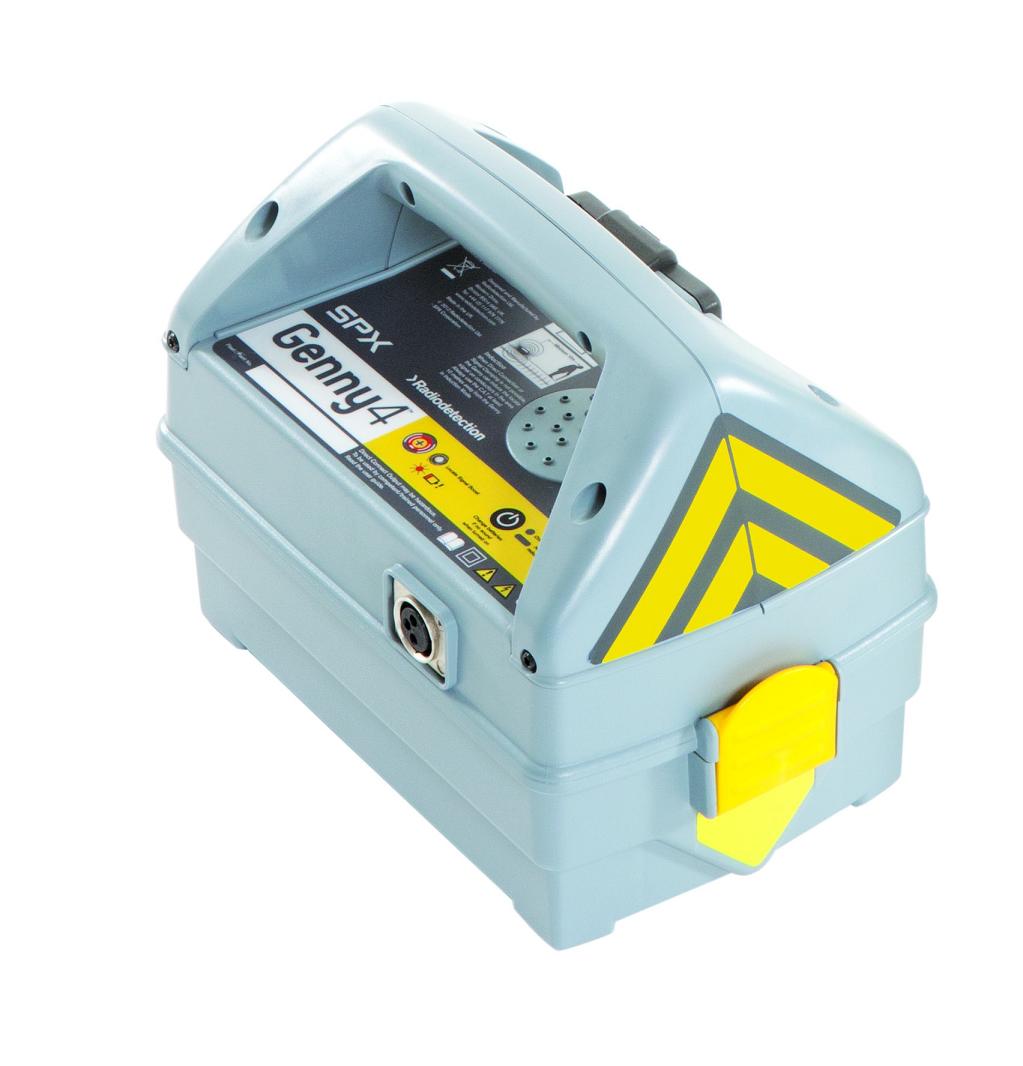

Genny4 Signal Generator

Genny4 Signal Generator

Product Code: 24/5365-h

Signal Generator for applying signals to buried metallic utilities for detection by C.A.T4.


Features and Benefits
  • Generates two signals simultaneously, including the Small Diameter Locate frequency. Signal Boost to increase the output power by up to a factor of 10
Specifications
Weight 2.58kg (with batteries, tool tray and accessories)
Model RD Genny 4
Height 213mm
Width 172mm
Generator Mode 0 - 4m
Signal Generator Induction Range >300m
Network Rail Approved Yes
Generator Mode Frequencies Hz 33kHz and Small Diameter Locate frequency
Power Supply Signal Generator Battery 4 x D
Length 278mm
Instructional DVD Yes
Certificated Training POA Yes
Signal Generator Direct Connection Range >500m
Detection Depth 0-4m
Induction Range >300m
Direct Connection Range >500m
Generator Signal 33kHz and small diameter locate
Certified Training Available Yes
