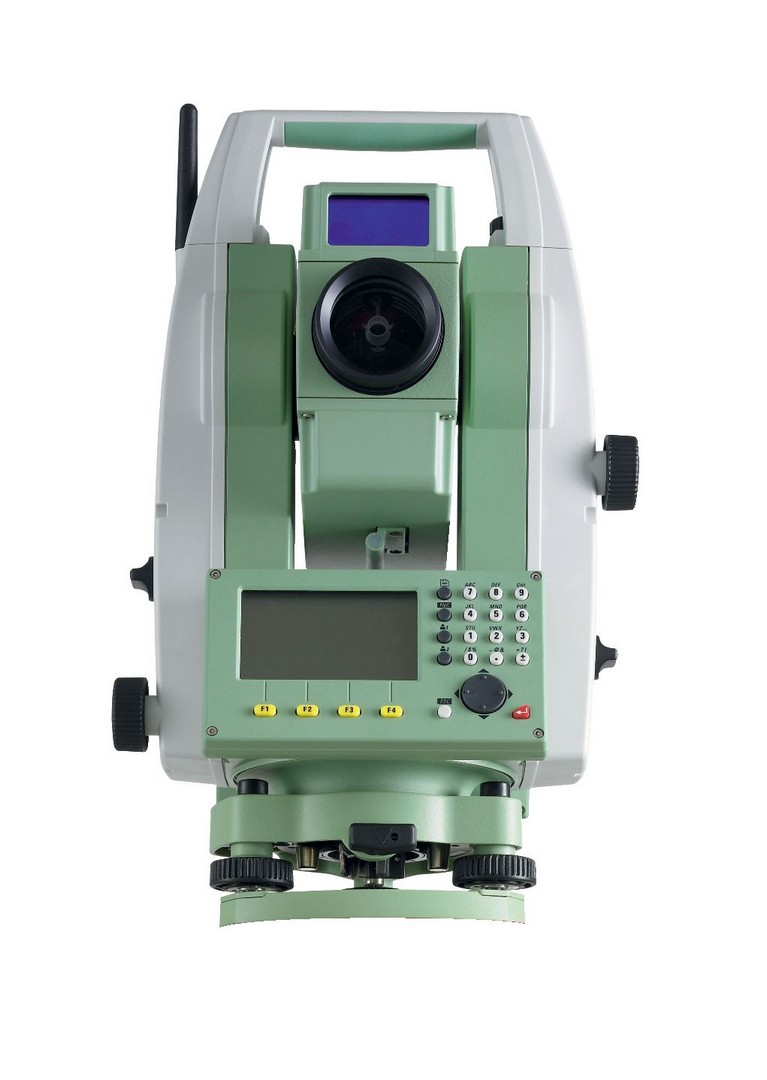

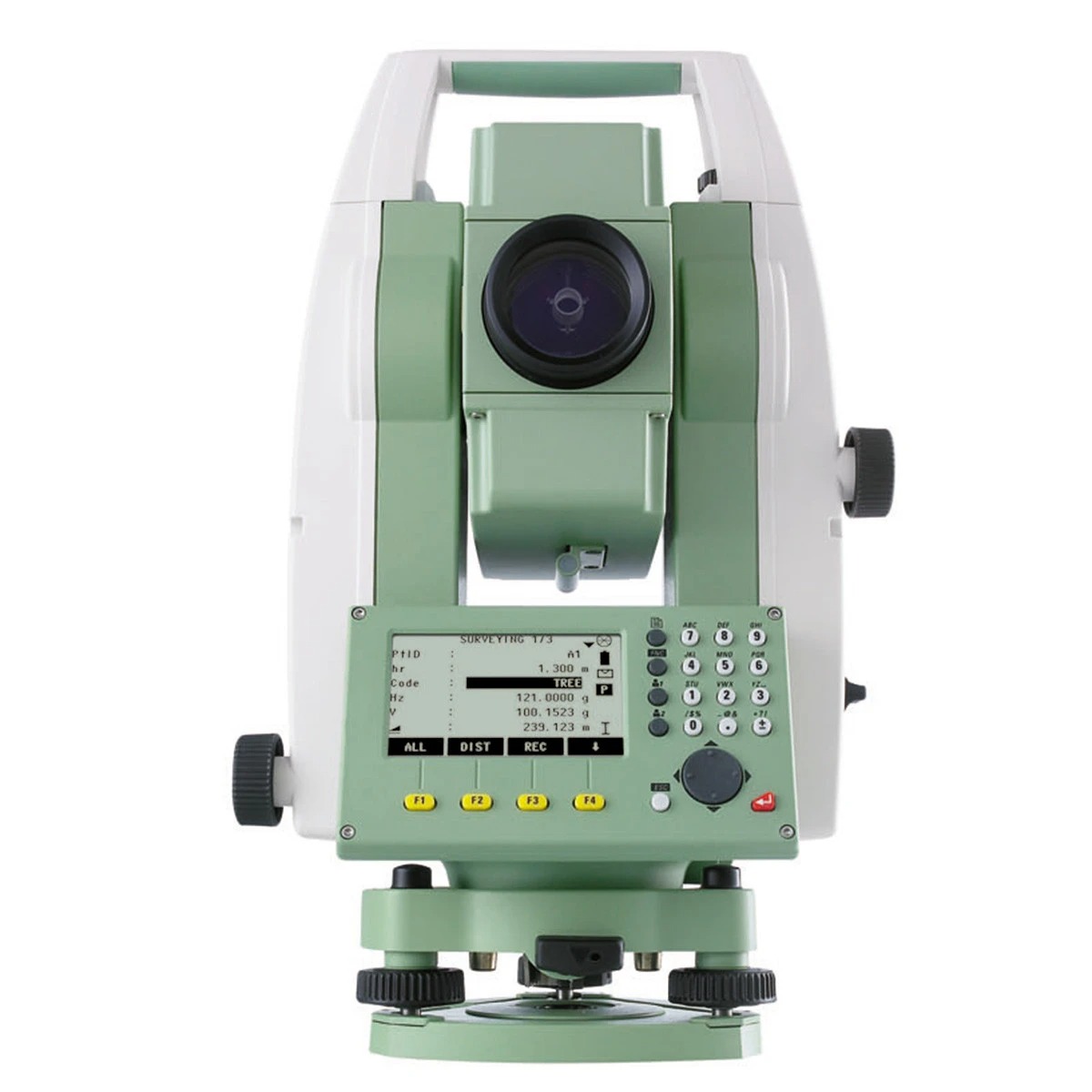

TS06 Flexline Plus

TS06 Flexline Plus

Product Code: 24/5875-h

For complete flexibility, a total station that is ready for any challenge. As standard, an alpha-numerical keyboard, a complete set of application software and DTM volum calculation. For additional flexibility, a wide range of options ensures that you can always count on your TS06 total station.


Specifications
Model Leica TS06 Plus R500/Power
Temperature Range -20degC to +50degC
Magnification 30x
Internal Memory 60,000 measurements
Compensator Dual Axis
Interface RS232 cable, USB, intergrated Bluetooth
Compensator Accuracy 1.5 seconds
Angle Measurement 5 seconds (1.5 mgon)
Keyboard Alphanumeric
Battery Life 20 hrs
IP Ratings IP55 (IEC 60529)
Range Round Prism 3500m
Accuracy or Measurement Time 1.5mm + 2ppm
Distance Measurement without Reflector 400m
Plummet Laser
Memory Devices USB Memory Stick
Software Leica FlexField
Angular Accuracy 5 seconds
Distance Accuracy to Prism 1.5mm +2ppm
Max Range to Round Prism 3500m
Max Range to Reflectorless 500m
Onboard Software Flexfield Plus
Interfaces RS232, USB, Mini USB, Bluetooth
