Skip Loader

Skip Loader

Product Code: 27/0040-h

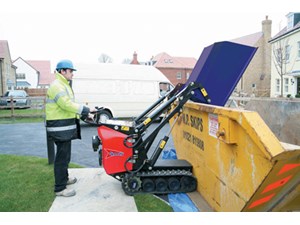

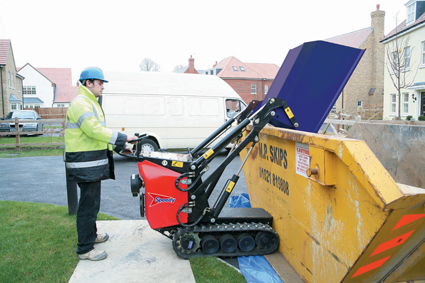

Walk behind, high-tip, diesel-powered mini tracked dumper designed by JCB to save you time and energy.

Features and Benefits
  • • Lifting buzzer, bull bar, hour metre available as options • Electric start as standard • CESAR data tag option • 2 speed tracking gives lower speed for precision and control and high speed for travelling across site • Maximum machine width of just 690mm fits through a standard doorway • Pull out engine • 1,450mm tip height tips directly into a skip or high sided vehicle • High carrying capacity of 500KG
Specifications
Capacity: Kg 500
Engine Displacement: cm³ 349
Engine Power: kW 4.4
Engine: RPM 3,000
Fuel Tank Capacity: Ltrs 4.3
Fuel Type Diesel
Ground Clearance: mm 1,450
Height: mm 2,720
Hydraulic System Capacity: Ltrs 14
Length: mm 1,700
Product Brand JCB
Product Model HTD5
Speed Range: Kph 0 - 4
Track Gauge: mm 180
Transport Height: mm 1,100
Weight: kg 475
Width: mm 690
Product Comparison
Product Name Capacity: Kg Engine Displacement: cm³ Engine Power: kW Engine: RPM Fuel Tank Capacity: Ltrs Fuel Type Ground Clearance: mm Height: mm Hydraulic System Capacity: Ltrs Length: mm Product Brand Product Model Speed Range: Kph Track Gauge: mm Transport Height: mm Weight: kg Width: mm Capacity Decibel Reading: dB[A] Engine Fuel Fuel Tank Capacity Height Length Safe Working Load Sound Pressure Level Vibration Reading [HAVs]: m\s² Weight Width Price
Skip Loader 500 349 4.4 3,000 4.3 Diesel 1,450 2,720 14 1,700 JCB HTD5 0 - 4 180 1,100 475 690 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Skip Loader - Tracked - Diesel N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A TD500HL N/A N/A N/A N/A N/A 255ltr 96 Honda 4-Stroke Ohv Petrol Engine Petrol 3.6ltr 1.21m 1.96m 500kg 10lwa 11 317kg 0.68m
