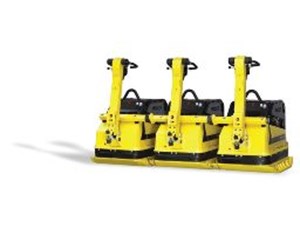

Wacker Neuson DPU110 Remote Triple Wacker Plates Diesel 2,616kg


35/1870-h

Code: 35/1870-h + ADD TO MY WISHLIST

The Wacker Neuson DPU100 is specially equipped for use in the coupling set. Three of these machines, together with the supplementary package, form a 3rd coupling set. It can be used for soil compaction as well as for the compaction of railroad ballast. The ideal machine for compacting gravel in track construction. It is light enough not to sink in the track bed and has a large working width of three meters. It prepares a large area within a very short time. The entire track bed can be compacted with a few steps of operation. The three coupled DPU110 vibratory plates can also be decoupled and used individually.

POA
(Price On Application)
You are unable to add POA items to your basket. Call 0800 500 3993 for a price.
If this product is for domestic use then please check recommended options for additional products

Features and Benefits

  • Extreme working width of 3m, with only one pass a very wide area can be compacted - more than 4,300 square meters per hour
  • Easy assembly of the coupling linkage [hired separately]
  • Stable mechanical coupling of the machines, easy to install in a few simple steps
  • The coupling set very efficiently compacts large areas in a short time
  • "Plug and Play", automatic setup of the infrared connection between the machines
  • Safe operation on slopes thanks to remote control, no risk of falling for the operator
  • A light signal provides constantly information about the connection status of the coupling set and the remote control
  • Infrared remote control - Operator is away from noise and dust

Specifications and product comparison




Centrifugal Force: kN 110 100 110 100
Engine Power: kW 18.5 12.8 16 12.8
Engine: RPM 3,600 3,000 3,600 3,000
Fuel Consumption: L\Hr 4.1 -- -- --
Fuel Tank Capacity: Ltrs 11.2 7.5 11.2 7.5
Fuel Type Diesel Diesel Diesel Diesel
Gradeability: % 36 40 36 40
Ground Clearance: mm 830 -- 830 --
Height: mm 1,541 -- 1,541 --
Length: mm 1,477 -- 2,409 --
Plate Size: mm 1,182 x 970 1,080 x 800 1,182 x 970 1,080 x 800
Product Brand Wacker Neuson Wacker Neuson Wacker Neuson Wacker Neuson
Product Model DPU110 DPU 100-70 DPU 110r 970 DPU 100-70
Sound Power Level: Lw dB[A] 109 109 109 109
Sound Pressure Level: dB[A] 94 95 95 95
Starting System Electric Electric Electric Electric
Vibration Reading [HAVs]: m\s² 2.5 -- 1 --
Weight: kg 2,616 768 830 768
Width: mm 3,000 -- 970 --
