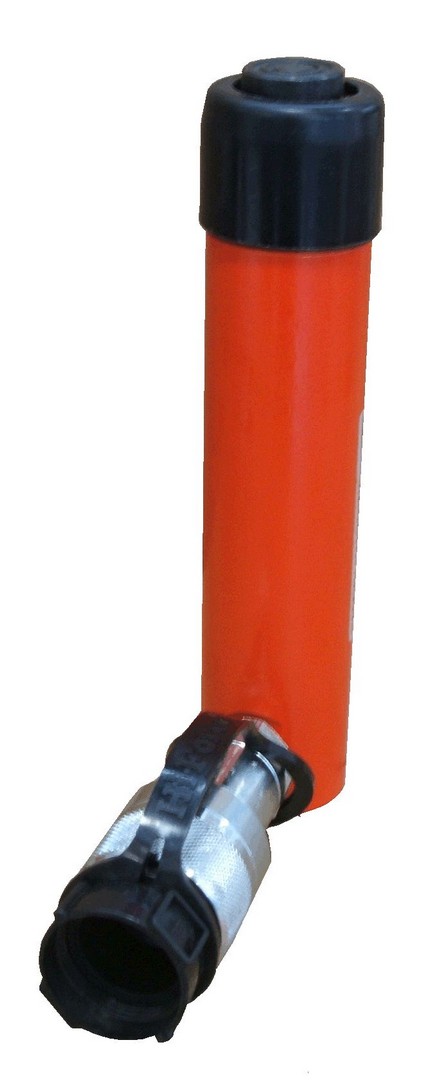

GP Cylinder 4.5t SWL 176mm Stroke 258mm Closed Height

GP Cylinder 4.5t SWL 176mm Stroke 258mm Closed Height

Product Code: 74/5020-h

Provides an excellent choice for maintenance, production, fabrication and construction applications. Provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing.

Login Add to Shortlist
Features and Benefits
  • Spring assisted return. Nitrocarburised piston rod. Low friction bearing surfaces. Anti-extrusion seals. Collar threads withstand full load. Collar thread protector supplied as standard.
Specifications
Closed Height 258mm
Oil Capacity 113cm³
Product Model HSS57
Safe Working Load 4.5t
Stroke Upto 176mm
Weight 2kg
Product Comparison
Product Name Closed Height Oil Capacity Product Model Safe Working Load Stroke Upto Weight Price
GP Cylinder 4.5t SWL 25mm Stroke 107mm Closed Height 107mm 16cm³ HSS51 4.5t 25mm 1kg

GP Cylinder 4.5t SWL 50mm Stroke 132mm Closed Height 132mm 32cm³ HSS52 4.5t 50mm 1.2kg

GP Cylinder 4.5t SWL 75mm Stroke 157mm Closed Height 157mm 48cm³ HSS53 4.5t 75mm 1.4kg

GP Cylinder 4.5t SWL 125mm Stroke 207 mm Closed Height 207mm 80cm³ HSS55 4.5t 125mm 1.8kg

GP Cylinder 4.5t SWL 176mm Stroke 258mm Closed Height 258mm 113cm³ HSS57 4.5t 176mm 2kg

GP Cylinder 4.5t SWL 227mm Stroke 308mm Closed Height 308mm 146cm³ HSS59 4.5t 227mm 2.4kg

GP Cylinder 10t SWL 25mm Stroke 100mm Closed Height 100mm 36cm³ HSS101 10t 25mm 1.8kg

GP Cylinder 10t SWL 56mm Stroke 131mm Closed Height 131mm 81cm³ HSS102 10t 56mm 2.4kg

GP Cylinder 10t SWL 100mm Stroke 175mm Closed Height 175mm 144cm³ HSS104 10t 100mm 3kg

GP Cylinder 10t SWL 150mm Stroke 225mm Closed Height 225mm 217cm³ HSS106 10t 150mm 4.2kg

GP Cylinder 10t SWL 206mm Stroke 281mm Closed Height 281mm 297cm³ HSS108 10t 206mm 5kg

GP Cylinder 10t SWL 250mm Stroke 325mm Closed Height 325mm 361cm³ HSS1010 10t 250mm 5.4kg

GP Cylinder 10t SWL 305mm Stroke 379mm Closed Height 379mm 440cm³ HSS1012 10t 305mm 6.2kg

GP Cylinder 10t SWL 350mm Stroke 458mm Closed Height 458mm N/A HSS1014 10t 350mm N/A

General Purpose Cylinder 14.5t SWL 50mm Stroke 154mm 101cm³ HSS152 14.5t 50mm 3.4kg

General Purpose Cylinder 14.5t SWL 100mm Stroke 204mm 203cm³ HS154 14.5t 100mm 5kg

General Purpose Cylinder 14.5t SWL 150mm Stroke 254mm 304cm³ HSS156 14.5t 150mm 6.6kg

General Purpose Cylinder 14.5t SWL 254mm Stroke 354mm 507cm³ HSS1510 14.5t 250mm 88kg

GP Cylinder 25t SWL 51mm Stroke 174mm Closed Height 174mm 178cm³ HSS252 25t 51mm 6.5kg

GP Cylinder 25t SWL 102mm Stroke 225mm Closed Height 225mm 356cm³ HSS254 25t 102mm 8kg

GP Cylinder 25t SWL 250mm Stroke 374mm Closed Height 374mm 874cm³ HSS2510 25t 250mm 12.6kg

GP Cylinder 29t SWL 205mm Stroke 374mm Closed Height 374mm 860cm³ HSS308 29t 205mm 18.6kg

GP Cylinder 50t SWL 51mm Stroke 150mm Closed Height 150mm 364cm³ HSS502 50t 51mm 13kg

GP Cylinder 50t SWL 102mm Stroke 201mm Closed Height 201mm 728cm³ HSS504 50t 102mm 16.8kg

GP Cylinder 50t SWL 152mm Stroke 251mm Closed Height 251mm 1084cm³ HSS506 50t 152mm 20kg

GP Cylinder 50t SWL 320mm Stroke 429mm Closed Height 429mm 2354cm³ HSS5013 50t 330mm 33.6kg

GP Cylinder 73t SWL 152mm Stroke 272mm Closed Height 272mm 1561cm³ HSS756 73t 152mm 31kg

GP Cylinder 109t SWL 102mm Stroke 223mm Closed Height 223mm 1565cm³ HSS1004 109t 102mm 223kg

GP Cylinder 109t SWL 153mm Stroke 274mm Closed Height 274mm 2347cm³ HSS1006 109t 153mm 49.8kg
