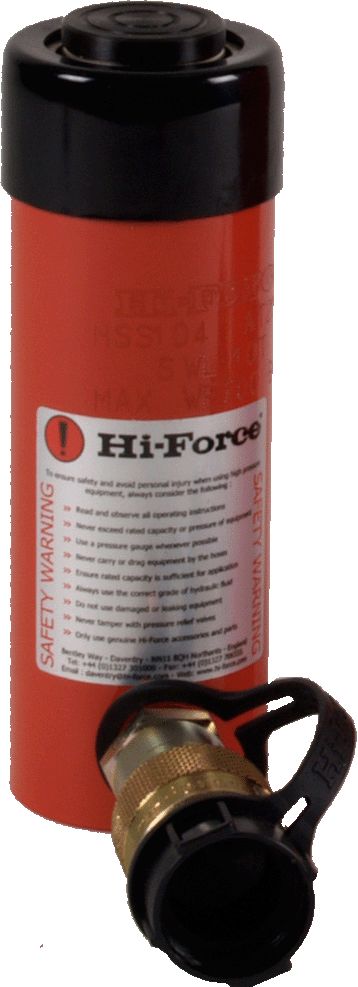

GP Cylinder 10t SWL 350mm Stroke 458mm Closed Height

GP Cylinder 10t SWL 350mm Stroke 458mm Closed Height

Product Code: 74/5065-h

Provides an excellent choice for maintenance, production, fabrication and construction applications. Provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing.

Features and Benefits
  • Spring assisted return. Nitrocarburised piston rod. Low friction bearing surfaces. Anti-extrusion seals. Collar threads withstand full load. Collar thread protector supplied as standard.
Safe Working Load 10t
Model HSS1014
Stroke Upto 350mm
Closed Height 458mm
Product Comparison
Product Name Weight Safe Working Load Stroke Upto Closed Height Oil Capacity Price
GP Cylinder 4.5t SWL 25mm Stroke 107mm Closed Height 1kg 4.5t 25mm 107mm 16cm³

GP Cylinder 4.5t SWL 50mm Stroke 132mm Closed Height 1.2kg 4.5t 50mm 132mm 32cm³

GP Cylinder 4.5t SWL 75mm Stroke 157mm Closed Height 1.4kg 4.5t 75mm 157mm 48cm³

GP Cylinder 4.5t SWL 125mm Stroke 207 mm Closed Height 1.8kg 4.5t 125mm 207mm 80cm³

GP Cylinder 4.5t SWL 176mm Stroke 258mm Closed Height 2kg 4.5t 176mm 258mm 113cm³

GP Cylinder 4.5t SWL 227mm Stroke 308mm Closed Height 2.4kg 4.5t 227mm 308mm 146cm³

GP Cylinder 10t SWL 25mm Stroke 100mm Closed Height 1.8kg 10t 25mm 100mm 36cm³

GP Cylinder 10t SWL 56mm Stroke 131mm Closed Height 2.4kg 10t 56mm 131mm 81cm³

GP Cylinder 10t SWL 100mm Stroke 175mm Closed Height 3kg 10t 100mm 175mm 144cm³

GP Cylinder 10t SWL 150mm Stroke 225mm Closed Height 4.2kg 10t 150mm 225mm 217cm³

GP Cylinder 10t SWL 206mm Stroke 281mm Closed Height 5kg 10t 206mm 281mm 297cm³

GP Cylinder 10t SWL 250mm Stroke 325mm Closed Height 5.4kg 10t 250mm 325mm 361cm³

GP Cylinder 10t SWL 305mm Stroke 379mm Closed Height 6.2kg 10t 305mm 379mm 440cm³

GP Cylinder 10t SWL 350mm Stroke 458mm Closed Height N/A 10t 350mm 458mm N/A

General Purpose Cylinder 14.5t SWL 50mm Stroke 3.4kg 14.5t 50mm 154mm 101cm³

General Purpose Cylinder 14.5t SWL 100mm Stroke 5kg 14.5t 100mm 204mm 203cm³

General Purpose Cylinder 14.5t SWL 150mm Stroke 6.6kg 14.5t 150mm 254mm 304cm³

General Purpose Cylinder 14.5t SWL 254mm Stroke 88kg 14.5t 250mm 354mm 507cm³

GP Cylinder 25t SWL 51mm Stroke 174mm Closed Height 6.5kg 25t 51mm 174mm 178cm³

GP Cylinder 25t SWL 102mm Stroke 225mm Closed Height 8kg 25t 102mm 225mm 356cm³

GP Cylinder 25t SWL 250mm Stroke 374mm Closed Height 12.6kg 25t 250mm 374mm 874cm³

GP Cylinder 29t SWL 205mm Stroke 374mm Closed Height 18.6kg 29t 205mm 374mm 860cm³

GP Cylinder 50t SWL 51mm Stroke 150mm Closed Height 13kg 50t 51mm 150mm 364cm³

GP Cylinder 50t SWL 102mm Stroke 201mm Closed Height 16.8kg 50t 102mm 201mm 728cm³
