10m Electric Scissor Lift - Mth

10m Electric Scissor Lift - Mth

Product Code: 77/0065-mh

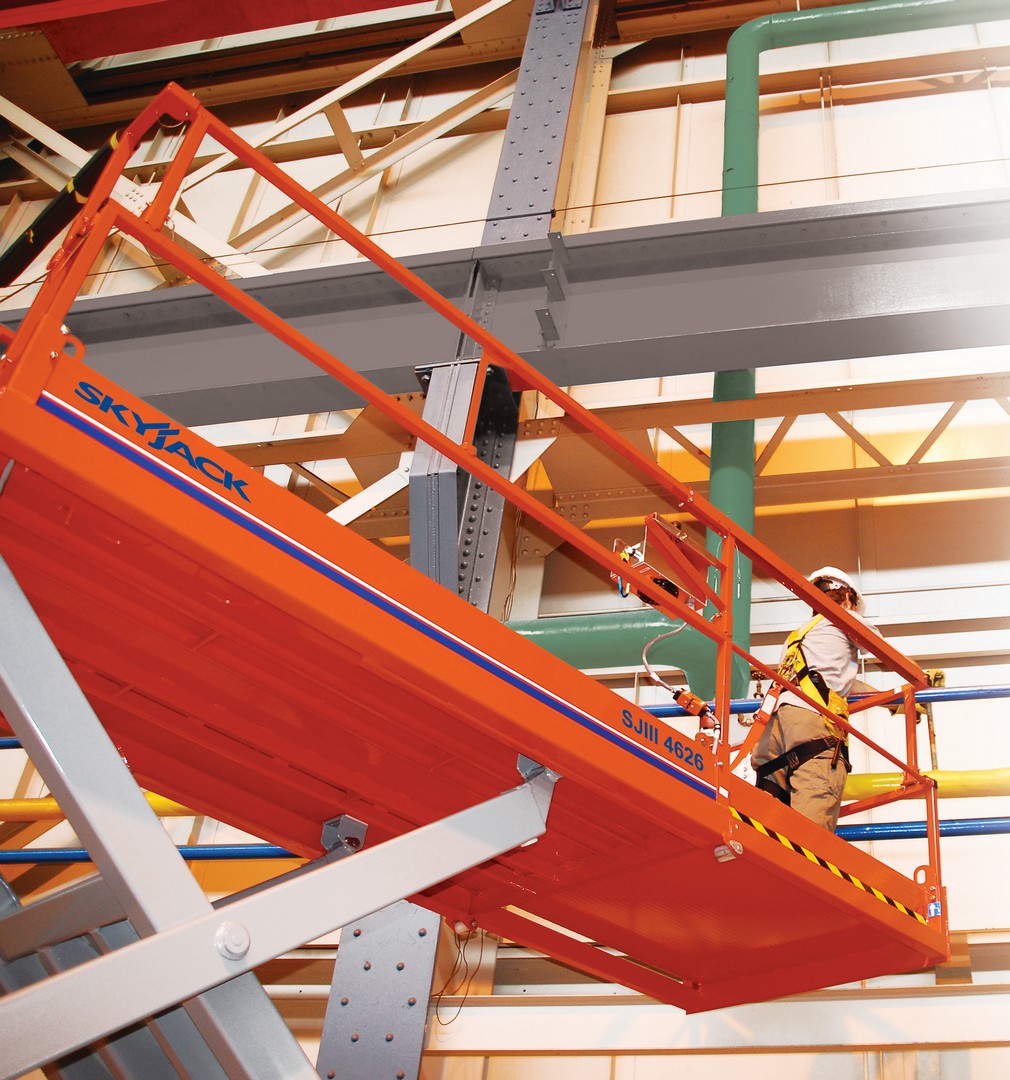

The Skyjack SJ4626 offers a maximum platform height of 7.9m (26ft) with a larger working area than the SJ3626. The SJ4626 has a platform size of 1.07m x 2.13m and a maximum capacity of 454kg. Its 1.22m roll-out extension deck can be secured in multiple positions.

New Product


Features and Benefits
  • Low-emissions deliver a quiet and convenient machine
  • Easily pass through standard single or double doors (compact dimensions and folding guardrails)
  • Standard solid non-marking tyres
Specifications
Weight 2060kg
Safe Working Load 454kg
Working Height 9.75m
Model SJ4626
Height 2.15m
Speed 2mph
Width 1.17m
Closed Height 2.28m
Platform Height 7.92m
Platform Size 7.07x2.13m
Handrail Height 8.9m
Length 2.31m
Closed Length 2.44m
Power Supply Electric
Platform Length 2.26-3.26m
Platform Width 1.16m
Max Number of Persons 3
Product Comparison
Product Name Safe Working Load Working Height Height Speed Width Platform Height Platform Size Length Weight Dry Max Number of Persons Weight Capacity Closed Height Max Platform Height Clearance Height Turning Radius Roll Out Deck Ext Min Platform Height Platform Length Platform Width Handrail Height Closed Length Power Supply Height, Stowed Ground Clearance Extension Length Speed, stowed Price
6.6m Skyjack Scissor Lift 272kg 6.4m 1.88m 2mph 0.81m 4.57m 0.66x1.63m 1.78m 1089kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

7.8m Scissor Lifts 230kg 7.77m 1.98m 2.8mph 0.79m 5.77m 0.74x1.72m 1.9m N/A N/A 1520kg N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

7m Electric Scissor Lift 230kg 7.79m 1.76m 2.5mph 0.81m 5.8m 0.69x1.82m 2.07m N/A 2 1565kg N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Skyjack Sj3219 7.8m (19ft) Scissor Lift 227kg Capacity - Mth 227kg 7.8m N/A Stowed: 3.7km/h. Raised: 1.1km/h 0.8m 1m N/A 1.8m N/A N/A 1310kg 2 people Rails up: 2m / Rails down: 1.6m 5.8m Stowed: 60mm. Raised: 18mm 1.7m (outside) 900mm 1m 1.6m 700mm N/A N/A N/A N/A N/A N/A N/A

8m Electric Scissor Lift - Mth 408kg 7.92m 1.97m 2mph 0.81m 6.1m 0.71x2.13m 2.32m N/A 2 1592kg N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

10m Electric Scissor Lift - Mth 454kg 9.75m 2.15m 2mph 1.17m 7.92m 7.07x2.13m 2.31m N/A 3 2060kg N/A 2.28m N/A N/A N/A N/A N/A 2.26-3.26m 1.16m 8.9m 2.44m Electric N/A N/A N/A N/A

Skyjack Sj3226 9.9m (26ft) Scissor Lift 227kg Capacity - Mth 227kg 9.92m N/A Stowed: 3.1km/h. Raised: 1.1km/h 0.81m 7.92m N/A 2.32m N/A N/A 1890kg 2 people N/A 7.92m Closed: 86mm / Raised: 19mm Inside: 1.3m / Outside: 2.8m 900mm 1.14m 2.1m 700mm N/A N/A N/A Rails Up: 2.2m / Rails Down: 1.9m N/A N/A N/A

Genie Gs3246 12m Scissor Lift - Mth 318kg 11.5m 2.39m 2.2mph 1.17m 9.5m 1.15x2.26m 2.41m 2812kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Genie Gs3232 12m Scissor Lift - Mth 227kg 11.75m 2.39m 2.2mph 0.81m 9.75m 0.81x2.26m 2.44m 2352kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

14m Electric Scissor Lift Narrow - Mth 350kg 13.85m 2.5m 1.7mph 1.2m 11.85m 1.2x2.31m 2.49m 3175kg 3.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

14m Electric Scissor Lift - Mth 360kg 14.19m 2.04m 3mph 1.75m 12.19m 1.65x2.92m 3.07m N/A N/A 5300kg N/A 2.5m N/A N/A N/A N/A N/A 2.3-3.22m 1.2m 13m 2.45m Electric N/A N/A N/A N/A

Skyjack Sj4632 9.75m Scissor Lift Swl 318kg Capacity - Mth 317kg 11.75m N/A N/A 1.17m 9.75m N/A 2.31m 2300kg N/A 2300kg N/A N/A 9.75m N/A 1.21m inside N/A 1.23m N/A N/A N/A N/A N/A 2.24m (rails up) 80mm / 20mm 1.22m (slide out) 3.2kph

15.7m Electric Scissor Lift 200kg 15.7m 2.05m 2.5mph 1.25m 13.7m 1.12x2.64m 2.84m 3180kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

18m Electric Scissor - Mth 500kg 18.5m 3.4m 1.2mph 1.2m 16.5m 1.16x3.38m 3.74m 7985kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Light Duty Pipe Rack (SJ3219, SJ3226 and SJ4632) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Heavy Duty Pipe Rack (SJ3219, SJ3226 and SJ4632 only) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Board Carrier (SJ3219, SJ3226 and SJ4632 only) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
