Skyjack Sj3219 7.8m (19ft) Scissor Lift 227kg Capacity - Mth

Skyjack Sj3219 7.8m (19ft) Scissor Lift 227kg Capacity - Mth

Product Code: 77/5280-mh

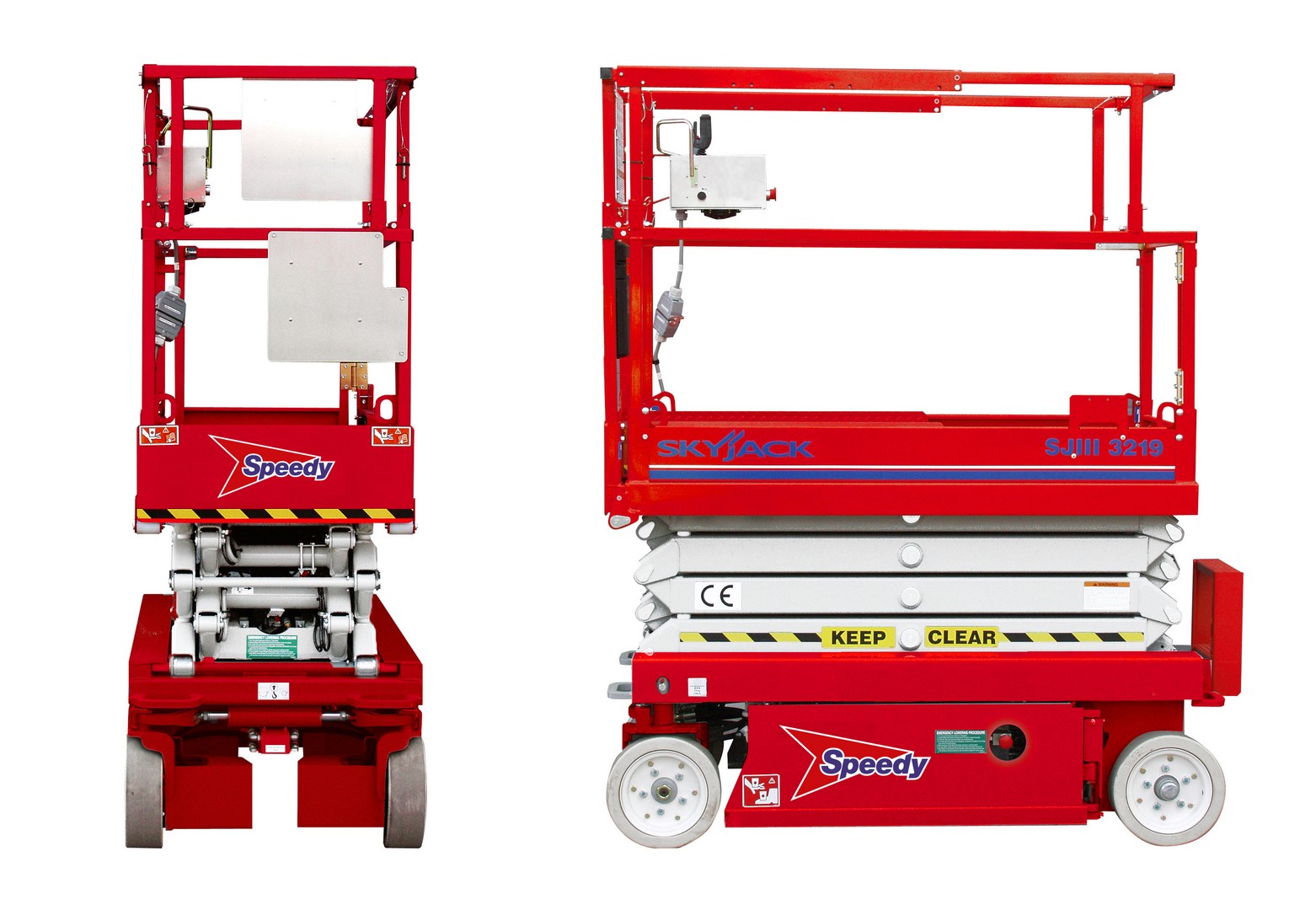

The Skyjack SJ3219 is a compact and versatile self-propelled electric scissor lift. With a working height of 7.79m, a 227kg platform capacity and a width of just 0.8m. The unit is extremely manoeuvrable providing access solutions in the most challenging environments. The model offers a 0.91m slide out extension deck providing an ‘’up and over’’ capability.

BIM ready Innovation Intelligent safety


Features and Benefits
  • Unique slide out deck extension provides up and over capability
  • Safe working load of 227kg
  • Safe working height of 7.79m

Downloadable Resources

Specifications
Weight 1310kg
Safe Working Load 227kg
Working Height 7.8m
Model SJ3219
Capacity 2 people
Speed Stowed: 3.7km/h. Raised: 1.1km/h
Width 0.8m
Closed Height Rails up: 2m / Rails down: 1.6m
Platform Height 1m
Max Platform Height 5.8m
Clearance Height Stowed: 60mm. Raised: 18mm
Length 1.8m
Turning Radius 1.7m (outside)
Roll Out Deck Ext 900mm
Min Platform Height 1m
Platform Length 1.6m
Platform Width 700mm
Product Comparison
Product Name Safe Working Load Working Height Height Speed Width Platform Height Platform Size Length Weight Dry Max Number of Persons Weight Capacity Closed Height Max Platform Height Clearance Height Turning Radius Roll Out Deck Ext Min Platform Height Platform Length Platform Width Handrail Height Closed Length Power Supply Height, Stowed Ground Clearance Extension Length Speed, stowed Price
6.6m Skyjack Scissor Lift 272kg 6.4m 1.88m 2mph 0.81m 4.57m 0.66x1.63m 1.78m 1089kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

7.8m Scissor Lifts 230kg 7.77m 1.98m 2.8mph 0.79m 5.77m 0.74x1.72m 1.9m N/A N/A 1520kg N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

7m Electric Scissor Lift 230kg 7.79m 1.76m 2.5mph 0.81m 5.8m 0.69x1.82m 2.07m N/A 2 1565kg N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Skyjack Sj3219 7.8m (19ft) Scissor Lift 227kg Capacity - Mth 227kg 7.8m N/A Stowed: 3.7km/h. Raised: 1.1km/h 0.8m 1m N/A 1.8m N/A N/A 1310kg 2 people Rails up: 2m / Rails down: 1.6m 5.8m Stowed: 60mm. Raised: 18mm 1.7m (outside) 900mm 1m 1.6m 700mm N/A N/A N/A N/A N/A N/A N/A

8m Electric Scissor Lift - Mth 408kg 7.92m 1.97m 2mph 0.81m 6.1m 0.71x2.13m 2.32m N/A 2 1592kg N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

10m Electric Scissor Lift - Mth 454kg 9.75m 2.15m 2mph 1.17m 7.92m 7.07x2.13m 2.31m N/A 3 2060kg N/A 2.28m N/A N/A N/A N/A N/A 2.26-3.26m 1.16m 8.9m 2.44m Electric N/A N/A N/A N/A

Skyjack Sj3226 9.9m (26ft) Scissor Lift 227kg Capacity - Mth 227kg 9.92m N/A Stowed: 3.1km/h. Raised: 1.1km/h 0.81m 7.92m N/A 2.32m N/A N/A 1890kg 2 people N/A 7.92m Closed: 86mm / Raised: 19mm Inside: 1.3m / Outside: 2.8m 900mm 1.14m 2.1m 700mm N/A N/A N/A Rails Up: 2.2m / Rails Down: 1.9m N/A N/A N/A

Genie Gs3246 12m Scissor Lift - Mth 318kg 11.5m 2.39m 2.2mph 1.17m 9.5m 1.15x2.26m 2.41m 2812kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Genie Gs3232 12m Scissor Lift - Mth 227kg 11.75m 2.39m 2.2mph 0.81m 9.75m 0.81x2.26m 2.44m 2352kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

14m Electric Scissor Lift Narrow - Mth 350kg 13.85m 2.5m 1.7mph 1.2m 11.85m 1.2x2.31m 2.49m 3175kg 3.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

14m Electric Scissor Lift - Mth 360kg 14.19m 2.04m 3mph 1.75m 12.19m 1.65x2.92m 3.07m N/A N/A 5300kg N/A 2.5m N/A N/A N/A N/A N/A 2.3-3.22m 1.2m 13m 2.45m Electric N/A N/A N/A N/A

Skyjack Sj4632 9.75m Scissor Lift Swl 318kg Capacity - Mth 317kg 11.75m N/A N/A 1.17m 9.75m N/A 2.31m 2300kg N/A 2300kg N/A N/A 9.75m N/A 1.21m inside N/A 1.23m N/A N/A N/A N/A N/A 2.24m (rails up) 80mm / 20mm 1.22m (slide out) 3.2kph

15.7m Electric Scissor Lift 200kg 15.7m 2.05m 2.5mph 1.25m 13.7m 1.12x2.64m 2.84m 3180kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

18m Electric Scissor - Mth 500kg 18.5m 3.4m 1.2mph 1.2m 16.5m 1.16x3.38m 3.74m 7985kg 2.0 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Light Duty Pipe Rack (SJ3219, SJ3226 and SJ4632) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Heavy Duty Pipe Rack (SJ3219, SJ3226 and SJ4632 only) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Board Carrier (SJ3219, SJ3226 and SJ4632 only) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
