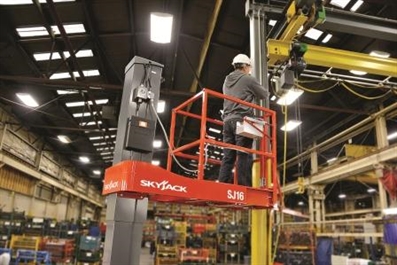

Skyjack Sj16 6.58m Mast Lift Swl 227kg Capacity

Skyjack Sj16 6.58m Mast Lift Swl 227kg Capacity

Product Code: 77/5286-h

Skyjack vertical mast lifts offer an easy to service, low maintenance design in a compact and versatile package. These are zero emission, compact machines with low floor loading have the ability to go on elevators, making them ideal for multi-level job sites.

BIM ready Innovation Intelligent safety

Features and Benefits
  • Ideal for warehousing, stock-picking, transporting, inventory management and general maintenance
  • Driveable when fully elevated
  • Zero inside turning radius, 140° rotating jib and 350° non-continuous hydraulic turntable for precise positioning
  • Narrow width to fit through doorways and in most passenger elevators

Downloadable Resources

Specifications
Height Stowed: m 1.78
Max. Platform Height: m 4.75
Min. Platform Height: m 0.46
Overall Length: m 1.37
Overall Width: m 0.78
Platform Length Inside: m 0.86
Platform Width Inside: m 0.69
Power Supply Battery
Product Brand Skyjack
Product Model SJ16
Safe Working Load: Kg 227
Total Platform Capacity: 1 person
Turning Radius Outside: m 1.40
Tyre Type Solid Non Marking
Weight: kg 980
Working Height: m 6.58
Product Comparison
Product Name Decibel Reading: dB[A] Length Max Number of Persons Max Platform Height Maximum Working Height Platform Height Platform Size: mm Product Model Safe Working Load Speed Weight Width Drive Speed Elevated: mph Drive Speed Lowered: mph Function Speed [Raise\Lower]: Sec Gradeability: % Ground Clearance [Raised]: mm Ground Clearance [Stowed]: mm Height Stowed: mm Max. Drive Height Max. Platform Height: m Max. Working Height: m Min. Platform Height: m Overall Length: mm Overall Width: mm Platform Length: mm Platform Width: mm Power Output Product Brand Safe Working Load: Kg Turning Radius Inside: m Turning Radius Outside: m Tyre Size: mm Tyre Type Weight: kg Wheel Base: mm Height Stowed: m Overall Length: m Overall Width: m Platform Length Inside: m Platform Width Inside: m Power Supply Total Platform Capacity: Working Height: m Height Battery Voltage: V Drive System Ground Clearance: cm Height Deployed: mm Length: mm Max. Drive Height: m Platform Height: m Price
5.45m Mast Lift GR12 <70 1.35m 1 3.45m 5.45m 3.45m 0.89x.075m GR12 227kg 2.5mph 717kg 0.75m N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Skyjack Sj12 5.6m Mast Lift 227kg Capacity N/A N/A 2 N/A N/A N/A N/A SJ12 N/A N/A N/A N/A 0.5 2.5 16 \ 14 30 16 54 1790 Full Height 3.65 5.65 0.45 1370 770 850 690 AC Power Socket on Platform Skyjack 227 0 1.4 12 x 4 x 8 Non-Marking - Solid 864 1070 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Skyjack Sj16 6.58m Mast Lift Swl 227kg Capacity N/A N/A N/A N/A N/A N/A N/A SJ16 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 4.75 N/A 0.46 N/A N/A N/A N/A N/A Skyjack 227 N/A 1.40 N/A Solid Non Marking 980 N/A 1.78 1.37 0.78 0.86 0.69 Battery 1 person 6.58 N/A N/A N/A N/A N/A N/A N/A N/A

Genie Gr15 6.47m Mast Lift 159kg Capacity <70 1.35m 1.0 4.52m 6.52m 4.52m 890x750mm GR15 227kg 2.5mph 994kg 0.75m N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 1.57m N/A N/A N/A N/A N/A N/A N/A

8.2m Mast Lift GR20 <70 N/A 1 6.02m 8.02m 6.02m 0.75x0.89m GR20 159kg 2.5mph 1112kg 0.8m N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 1.98m N/A N/A N/A N/A N/A N/A N/A

JLG 1230ES Vertical Mast Lift SWL 230Kg 24v N/A N/A N/A N/A N/A N/A N/A 1230ES N/A N/A N/A N/A 0.5 3 N/A N/A N/A N/A 1650 N/A N/A N/A N/A N/A N/A N/A N/A N/A JGL 230 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 24 Battery 7 5660 1360 3.66 3.66
