Geismar MC3 Profile Grinder 135kg


35/1340-h

Code: 35/1340-h + ADD TO FAVOURITES

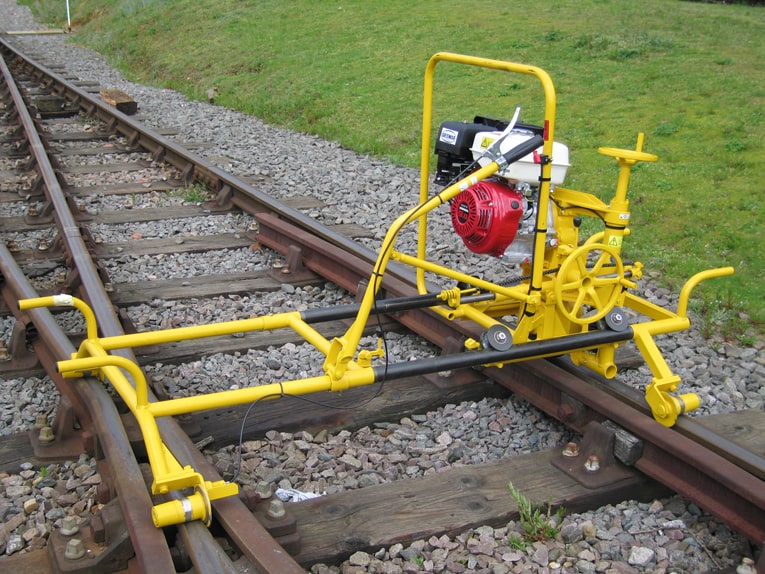

The Geismar MC3 frog point and check rail grinding machine is designed for grinding operations through switch and crossings either side of the rail head.

All prices are exclusive of VAT, business rates available.

Sign in to see your bespoke prices.
This product is restricted for hire on a non-credit account basis.

Specification and product comparison




Angle Measurement: ° 25 -- 90 and 180 90 and 180 -- 25 +/- 30 --
Grindstone Stroke: mm 385: [Horizontal], 185: [Vertical] -- -- -- -- 385: [Horizontal], 185: [Vertical] 385: [Horizontal], 185: [Vertical] --
Height: mm 1,030 -- 800 800 1,030 1,030 1,030 470
Length: mm 2,160 -- 1,120 1,120 2,140 2,160 2,140 740
Product Brand Geismar Geismar Geismar Geismar Geismar Geismar Geismar Thermit
Product Model MC3 ESN3H MK2 MP12 MP12 MV3 MC3 LUL MV3 LUL 141700
Weight: kg 135 50 59 59 130 135 130 30
Width: mm 1,100 -- 760 760 1,100 1,100 1,100 800
Max Pressure: PSI -- 4,641 -- -- -- -- -- --
Maximum Force: kN -- 220 -- -- -- -- -- --
Trimming Stroke [Max]: mm -- 155 -- -- -- -- -- --
Engine Power: kW -- -- 5.21 -- -- -- -- --
Fuel Type: -- -- Petrol Diesel -- -- -- --
Grindstone Adjustment: mm -- -- 62 62 -- -- -- --
Length -- -- -- -- -- 2.14m -- --
Voltage: V -- -- -- -- -- -- -- 110
