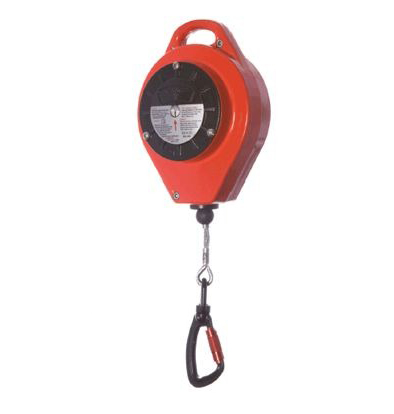

Checkmate FABX2-18C Fall Arrest Block 18m SWL 136kg
Checkmate FABX2-18C Fall Arrest Block 18m SWL 136kg
The Checkmate FABX2-18C is a lightweight and durable self-retracting lifeline offering exceptional performance to ensure that the user has maximum safety while working at height.
POA
(Price On Application)
(Price On Application)
Not a customer? OPEN AN ACCOUNT
Features and Benefits
- Brake pawls & plate manufactured from aluminium alloy T6 and hard anodised, this plate retains the hardened stainless pawls and spindle
- The durable PC/ABS housing provides protection to the mechanical assembly inside
- Load Bearing Chassis - the internal hot rolled steel chassis provides a structural metallic core beneath the external protective housing
- Swivel load indicating hook includes a fall indicator, which clearly shows if the device has been subjected to a shock load
- Dual spring assembly ensures reliable recoil and even distribution of power
- BCS Brush Cleaning System - The entry aperture has a pair of opposing brushes to reduce take up of debris into the device.
- Certified to EN 360, AS/NZS 1891.3.1997 (EN) Standards
- Maximum Arresting Force of 4.5kN
Specifications and product comparison
| Cable Length: m | 18 | 6 | 10 | 15 | 20 | 2 |
|---|---|---|---|---|---|---|
| Depth: mm | 144 | -- | -- | -- | -- | -- |
| Height: mm | 610 | 531 | 531 | 620 | 680 | 440 |
| No. of Users | 1 | 1 | 1 | 1 | 1 | 1 |
| Product Brand | Checkmate | Safehold | Safehold | Safehold | Safehold | Safehold |
| Product Model | FAB18 | 30401 | 30501 | 30201 | 30301 | 30054 |
| Safe Working Load: kg | 136 | 140 | 140 | 140 | 140 | 140 |
| Weight: kg | 6.4 | 4.4 | 4.5 | 6.8 | 10.5 | 2.2 |
| Width: mm | 226 | 226 | 226 | 250 | 300 | 150 |
