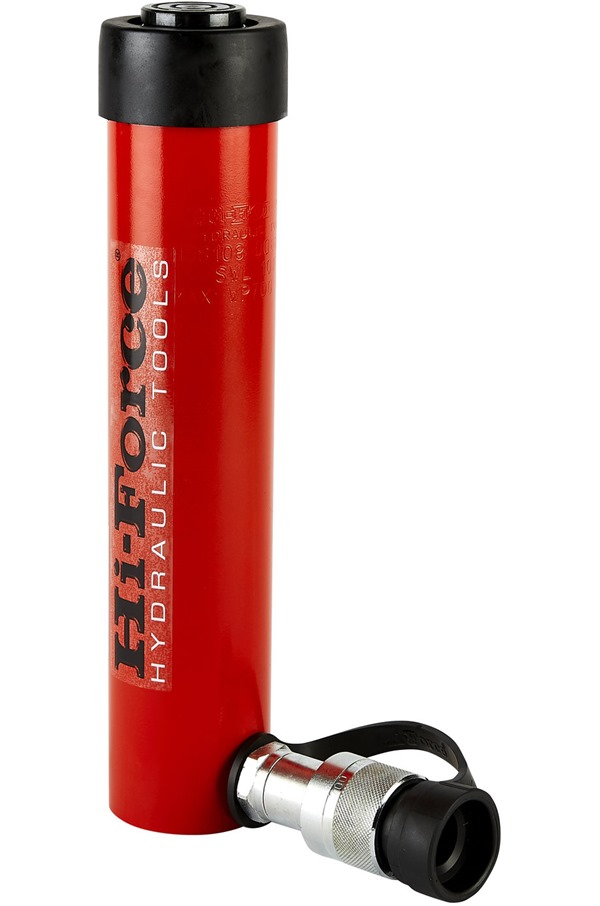

Hi-Force HSS104 General Purpose Cylinder 10t SWL 100mm Stroke
Hi-Force HSS104 General Purpose Cylinder 10t SWL 100mm Stroke
The Hi-Force HSS single acting multi-purpose cylinder range is suited for maintenance, production, fabrication and construction applications. Requiring sustained load holding for extended periods, such as bridge support work. The HSS single acting multi-purpose cylinder range features a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing.
POA
(Price On Application)
(Price On Application)
Not a customer? OPEN AN ACCOUNT
Features and Benefits
- Single assisted return
- Nitrocarburised piston rod
- Low friction bearing surfaces
- Anti-extrusion seals
- Collar threads withstand full load
- Collar thread protector
Specifications and product comparison
| Depth: mm | 133 | 114 | 114 | 114 | 114 | 114 |
|---|---|---|---|---|---|---|
| Height [Closed]: mm | 175 | 107 | 132 | 157 | 207 | 258 |
| Pressure [Max.]: bar | 700 | 700 | 700 | 700 | 700 | 700 |
| Product Brand | Hi-Force | Hi-Force | Hi-Force | Hi-Force | Hi-Force | Hi-Force |
| Product Model | HSS104 | HSS51 | HSS52 | HSS53 | HSS55 | HSS57 |
| Ram Diameter: mm | 35 | 38 | 20 | 24 | 24 | 20 |
| Ram Stroke [Max.]: mm | 100 | 25 | 50 | 75 | 125 | 176 |
| Safe Working Load: t | 10 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Weight: kg | 3 | 1 | 1.2 | 1.4 | 1.8 | 2 |
| Width: mm | 57 | 38 | 38 | 38 | 38 | 38 |
