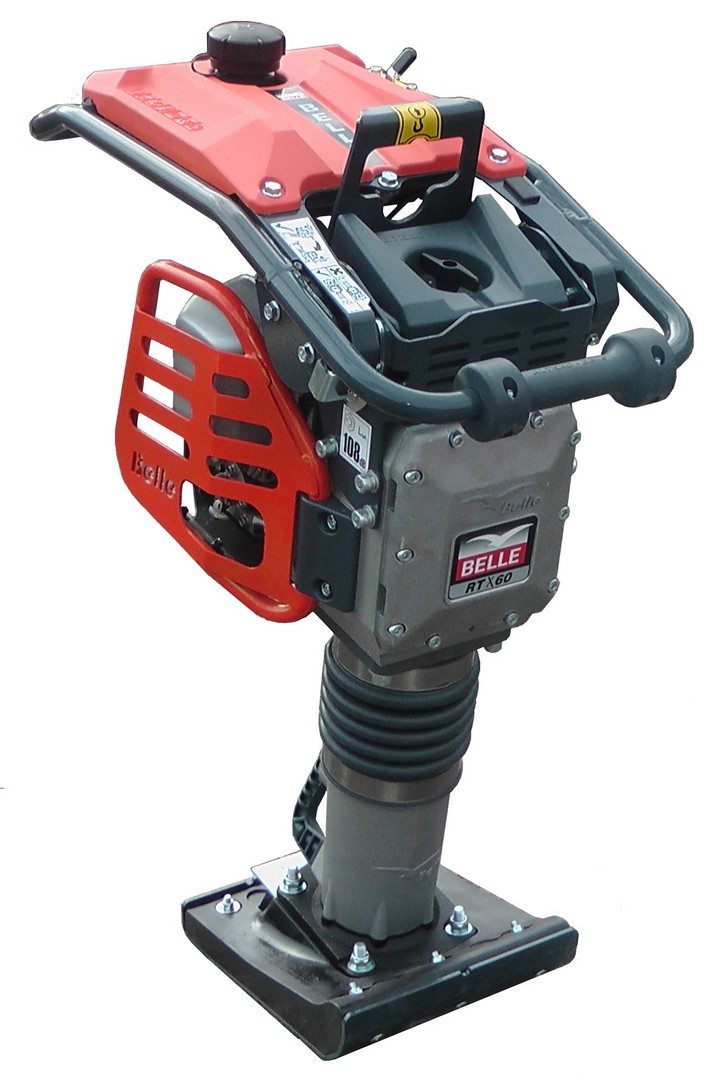

Trench Rammer - Belle RTX60

Trench Rammer - Belle RTX60

Product Code: 18/0170-h

The RTX range of Trench Rammers are equipped with the latest in Air and Fuel filtration systems to keep you working no matter what the conditions. This low maintenance Rammer is equipped with a Carburettor primer bulb for easy start-ups, swing out protection system for easy access during maintenance and with a Low HAV rating, means the user can keep working safely for a longer period. With wooden and plastic foot options, there are service kits, wheel kits and even customised colour options available.


Features and Benefits
  • High level compaction in a wide variety of applications
  • Swing-out engine protection for easy access to maintenance points
  • Triple-filtration air cleaner system
  • Duel-filtration fuel system
  • Carburettor primer bulb
  • Low HAV rating

Downloadable Resources

Energy Efficient
Products in excess of 10% more efficient than their predecessors. This product category also comes with indicative costs and carbon benefits per hour of usage.
Resource Efficient
Products which are designed better and therefore use less material, or have a high % of recycled content, over and above what would generally be expected. This category would also cover end of life re-use.
Waste Reduction
Products which reduce waste on-site and therefore reduce waste to landfill from construction sites.
Specifications
Model RTX60
Height 975mm
Width 345mm
Decibel Reading dB[A] 108db(A)
Fuel Tank Capacity 2.5ltr
Fuel Type Petrol
Blows per Minute 450-660bpm
Length 705mm
Vibration Reading m\s2 7.45m/s²
Weight Dry 60kg
Ramming Shoe Width 165mm
Impact Force 13.6kN
GO Energy Efficiency and Carbon Reduction Yes
GO Resource Efficiency Yes
GO Waste Reduction and End of Life Benefits Yes
GO Energy Saving 72%
GO Carbon Saving 0.02
GO Cost Saving £1.01
Stroke 52mm
Product Comparison
Product Name Weight Height Width Decibel Reading dB[A] Fuel Tank Capacity Centrifugal Force Travel Speed HAUC Approved Base Power Output Time to EAV Time to ELV Time to Achieve Work Unit Units to EAV Impact Power j Units to ELV Power_KW HSE Points Blows per Minute Length Fuel Frequency Vibration Reading m\s2 Ramming Shoe Width Engine Speed 3 Axis Vibration GO Pollution Prevention and Control Fuel Type Weight Dry Impact Force Stroke Capacity Battery Life GO Nuisance Avoidance Percussion Rate Rated Performance Rated Voltage Price
Trench Rammer 4 Stroke (65kg) 60kg 975mm 345mm 108 3ltr 18.7kN 13.5m/min Yes 230 x 335 x 75 mm 2.3kW 0hrs 57mins 3hrs 48mins 61.39 seconds 29 13.6kN 119 2.3kw 49 per 15mins 450-660 670mm Petrol (4 Stroke) 620vpm 10 230 3850 RPM 7.25m/sec2 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

£60.00 / week

Trench Rammer 2 Stroke (57kg) 60kg 975mm 345mm 108 3ltr 18.7kN 8m/min No 165 x 335 x 75 mm 2.3kw 0hrs 57mins 3hrs 48mins N/A N/A 13.6kN N/A 2.3kw 49 per 15mins 450-660 N/A Petrol (2 Stroke) 620vpm 5.4 160 3850 RPM 7.25m/sec2 Yes N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

£60.00 / week

Trench Rammer 2 Stroke (66kg) 66kg N/A N/A 108 3ltr 18.7kN 17.4m/min Yes 280 x 335 x 75 mm N/A N/A N/A N/A N/A N/A N/A N/A N/A 450-660 N/A Diesel N/A 7.6 280 3850 RPM 7.25m/sec3 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

£60.00 / week

Trench Rammer - Belle RTX60 N/A 975mm 345mm 108db(A) 2.5ltr N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 450-660bpm 705mm N/A N/A 7.45m/s² 165mm N/A N/A N/A Petrol 60kg 13.6kN 52mm N/A N/A N/A N/A N/A N/A

Wacker Trench Rammer Battery Powered N/A N/A N/A 108 2.5 ltr N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 680bpm N/A N/A N/A N/A 280mm N/A N/A Yes N/A 70kg N/A N/A 12Ah 0.3h Yes 680 blows/min 1,97kW 51v
