Electric Heater 18kw

Electric Heater 18kw

Product Code: 20/0104-h

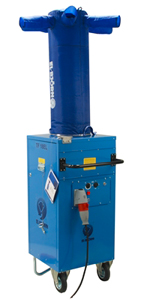

Heating and drying buildings can be both expensive and time consuming. An El-Björn model TF18EL is an effective solution and is quick and easy to install and operate. It has two fan speeds 2300/1700m³/h for optimum performance under most site applications. The machine can be set at 9-18kW and fans can be regulated to operate at both half and full speed. The TF18 is designed to cover an area of 350m² or 1225m³,at -13°C outside to 15-18°C inside, with normal insulated walls in the building with a typical ceiling height of around 3m. The temperature is controlled to operate at both min and max regulated settings and a simple design facilitates quick and easy filter replacement.


Features and Benefits
Specifications
Weight 72kg
Height 1260mm
Depth 660mm
Width 530mm
Decibel Reading: dB[A] 65
Heat Output 61418 BTU/hr
Power Output 9-18kW
Current 32A
IP Ratings IP44
Air Displacement 2300/1700m/h
Heating Power 18kW
Noise Level 65db(A)
Product Comparison
Product Name Height Width Decibel Reading: dB[A] Heat Output Power Output Length Weight Dry AC Output Current Air Displacement Heating Power Weight Depth Current IP Ratings Noise Level Dimensions Price
Master 3Phse Electric Heater 800mm 710mm 67 102,400BTU 30KW 910mm 38kg 32amp 3,100 m³/h 30kW N/A N/A N/A N/A N/A N/A

Electric Heater 18kw 1260mm 530mm 65 61418 BTU/hr 9-18kW N/A N/A N/A 2300/1700m/h 18kW 72kg 660mm 32A IP44 65db(A) N/A

Fan Heater - 18kw - 415v N/A N/A 73 61,400BTU N/A N/A N/A N/A 1,700m³/h 18kW 29kg N/A N/A N/A N/A 530x490x700mm
