Dual Clipper Cd400Sp

Dual Clipper Cd400Sp

Product Code: 35/0793-h

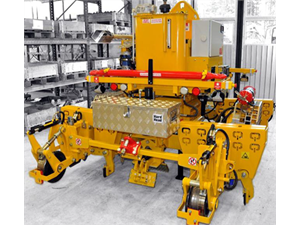

The Clip Driver CD400SP is a walk-behind machine for clipping and declipping clips of the following types: PANDROL FASTCLIP, PANDROL e-CLIPs and PANDROL PR-clips (PR400 series), depending on the choice of tool. CD400SP is self-propelled with a high-performance diesel engine and easy for a single operative to operate via a control panel. From the handheld control panel the operator controls the functions of the Clip Driver CD400 e.g. speed, clipping and declipping. The machine is equipped with an automatic system, with inductive sensors that trigger the clipping operation when the machine reaches the next sleeper. This makes the machine very fast and very reliable. The CD400SP has a sleeper lift that can be used for lifting low laying sleepers up to 90mm during track renewal on the Fastclip system.

Innovation


Features and Benefits
  • Guiding rollers to centre the machine in work mode for optimum precision
  • Hatz diesel engine with outstanding reliability
  • Up to 30 sleepers/min for Fastclip
  • Possible to raise machine during transport to go clear of fishplates and other obstacles
  • Automatic system that triggers clipping operation making the machine very fast

Downloadable Resources

Specifications
Weight Machine 134kg Trolley 46kg
Width 2.1m
Decibel Reading: dB[A] 83db(A)
Length 3.15m
Fuel Diesel
Weight Dry 2890kg
Electrical System 24V
Diesel Tank Capacity 70ltr
Hydraulic Tank Capacity 70ltr
